1
Engine displacement
250
2
Year
2015
3
Trim
EC 250 F RACING
4
Parts Catalog
CYLINDER / HEAD 250/300
5
Parts Diagram
Parts Catalog
CLUTCH
by
STARTER MOTOR 250/300
CYLINDER / HEAD 250/300
1
CYLINDER HEAD ASSY
5UM1110110
Not Available
2
GUIDE, VALVE 1 EC 250 4T 2010
5NL1113310
Not Available
3
GUIDE, VALVE 2 EC 250 4T 2010
5NL1113410
Not Available
4
PIN, DOWEL EC 250 4T 2010
9180816023
Not Available
5
PIN, DOWEL EC 250 4T 2010
9180816023
Not Available
6
BOLT, FLANGE EC 250 4T 2010
9010506027
Not Available
7
PLUG STRAIGHT SCREW
9034012007
Not Available
8
BOLT FLANGE
9502206010
Not Available
9
GASKET EC 250 4T 2010
9043006014
Not Available
10
BOLT STUD
9011606038
Not Available
11
BOLT STUD
9561208620
Not Available
12
PLUG SPARK (NGK R CR9E)
9470100410
Not Available
13
PLUG STRAIGHT SCREW
9034012007
Not Available
14
WASHER PLATE
9020112790
Not Available
14
PAD, ADJUSTIN 2 (2.05) EC 250 4T
1HX1216970
Not Available
15
GOUPILLE RETOUR SOUPAPE
3LN1215310
Not Available
15
JOINT CULASSE EC 250 4T 2
5NL1118100
Not Available
16
BOLT, FLANGE EC 250 4T 2010
9010509004
Not Available
16
GOUPILLE RETOUR SOUPAPE
3FV1215310
Not Available
17
BOLT, FLANGE EC 250 4T 2010
9010509002
Not Available
18
WASHER PLATE
90201096J9
Not Available
19
COVER CYLINDER HEAD 1
5NL1119140
Not Available
20
PIPE, BREATHER 2 EC 250 4T 2010
3711116701
Not Available
21
PIPE BREATHER 1
5UM1116600
Not Available
22
CLIP
90467140A4
Not Available
23
VIS COUVERCLE
5UM1119E00
Not Available
24
JOINT CACHE CULB. EC 250 4T 2010
5NL1119300
Not Available
25
CYLINDRE SEUL EC250 4T
5XC1131110
Not Available
26
JOINT EMABASE EC 250 4T 2010
5NL1135100
Not Available
27
NUT FLANGE
9570206500
Not Available
28
PIN, DOWEL EC 250 4T 2010
9361216254
Not Available
29
BOLT FLANGE
9502206035
Not Available
30
CLAMP, HOSE 1 EC 250 4T 2010
5UM1138700
Not Available
38
KIT CYLINDRE/PISTON 290CC 4T
MF70000003012
Not Available
39
KIT JOINT HM 290CC 4T
MF90000013012
Not Available
40
PIPE 1
5XC1248190
Not Available
41
TORIC ENTREE EAU CULASSE
MFS821002510
Not Available
42
Screw 6x14
T0206014
$3,89 Unit Price incl. VAT

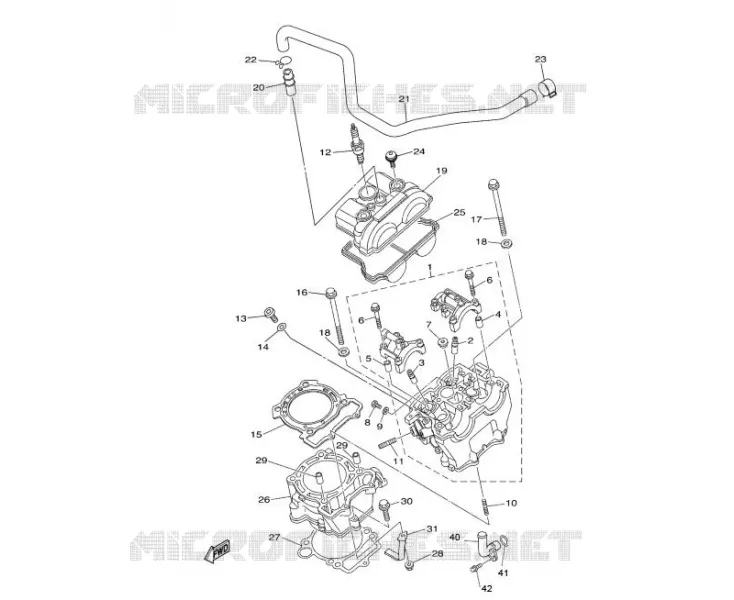

Find the detailed CYLINDER / HEAD 250/300 GASGAS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GASGAS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
