FRONT PLASTIC for GASGAS EC 300 F RACING from 2014

FRONT PLASTIC

1

PLAQUE PHARE EC 2013 ROUGE BRUT

BE90000103013

Not Available

1A

PLAQUE PHARE EC BLANCHE BRUT

BE90000023012

Not Available

2

HEADLAMP RUBBER HOLDER

BE25636015

Not Available

3

SUPORT PHARE BLANC

BE905102511

Not Available

3

SUPORT PHARE BLANC EC 14

BE90000113013

Not Available

4

SPECIAL PLASTIC BOLT 4X12 CELO RF87T ZIN

T0804012

Not Available

5

PATTE DE REGLAGE PHARE

BE90000033012

Not Available

6

VIS REGLAGE PHARE EC 2012

BE35000013012

Not Available

7

RESSORT VIS REGLAGE OPTIQUE

BX250020026

Not Available

8

Nut selflocking M6

T2105000

$2,59 Unit Price incl. VAT

9

Washer 5x12x1,5

T4005012

$2,59 Unit Price incl. VAT

10

ENTRETOISE ALU 5,5X10X6

T90055100006M

Not Available

11

SUPPORT DE REGLAGE PHARE EC 2012

EE20000013012

Not Available

12

VIS BTR REGL. OPTIQUE EC 08/10

T0304025

Not Available

13

Washer 4x12x1

T4004012

$2,59 Unit Price incl. VAT

14

NUT LOCKNUT. M4 (DIN 985)

T2104000

Not Available

15

OPTIQUE DE PHARE AVANT EC 11/13

EE200002511

Not Available

16

GB AV BLANC BRUT 2013/2015

BE910003013

Not Available

17

RAD SHROUD BUSHING

BE250032060

$14,57 Unit Price incl. VAT

18

Screw 6x20 DIN 6921 GEOMET 10.9

T0206020

$3,89 Unit Price incl. VAT

19

UPPER RIGHT RADIATOR COVER

BE915053013

Not Available

19

OUIE RADIAT.D EC 2013 BRUT ROUGE

BE915063013

Not Available

19A

OUIE LATE. DROITE EC 2014 RACING

BE91500CTCAW1

Not Available

19A

OUIE LATE. DROITE EC 14

BE91500CTCAB1

Not Available

20

UPPER LEFT RADIATOR COVER

BE920053013

Not Available

20

OUIE RADIAT.G EC 2013 BRUT ROUGE

BE920063013

Not Available

20A

OUIE RADIAT. GAUCHE EC 14

BE92000CTCAB1

Not Available

20A

OUIE LATE. GAUCHE EC 2014 RACING

BE92000CTCAW1

Not Available

22

ALLEN BOLT 5x16

T0505016

Not Available

23

CACHE RAD. D EC BRUT BLANC 13/14

BE915103013

Not Available

23A

CACHE RAD. DROIT EC 14

BE91510CTCAB1

Not Available

23A

CACHE RADIAT. DRT EC RACING 2014

BE91510CTCAW1

Not Available

24

CACHE RAD. G EC BRUT BLANC 13/14

BE920103013

Not Available

24A

CACHE RADIAT. GCH EC STD 2014

BE92010CTCAB1

Not Available

24A

CACHE RADIAT. GCH EC RACING 2014

BE92010CTCAW1

Not Available

25

RIVET METALIQUE

BE35000083012

Not Available

26

Nut

BX250020029

$2,59 Unit Price incl. VAT

27

SCREW 48X13

T0606013

Not Available

28

Washer 5x12x1,5

T4005012

$2,59 Unit Price incl. VAT

29

SUPPORT GB AV EC 2013

BE90000463012

Not Available

30

JOINT TORIQUE

BE94040GGCAB1

Not Available

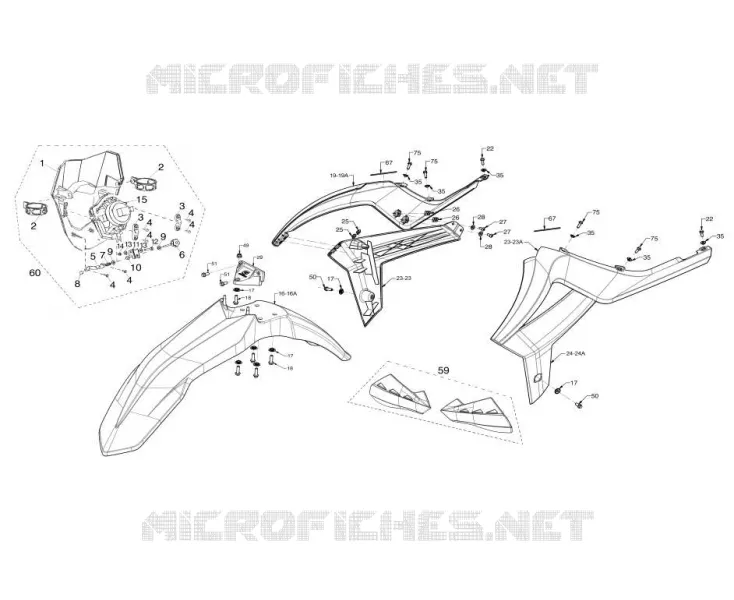

Find the detailed FRONT PLASTIC GASGAS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GASGAS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
