1
Engine displacement
300
2
Year
2014
3
Trim
EC 300 F RACING
4
Parts Catalog
FRONT WHEEL / BRAKE
5
Parts Diagram
Parts Catalog
REAR WHEEL / BRAKE
by
SEAT
FRONT WHEEL / BRAKE
1
ROUE COMPLETE ECF 250 2014
BE50000CTCAB1
Not Available
1
ROUE COMPLETE EC 2014
BE50000CTCAW1
Not Available
2
AXE DE ROUE AV EC 222MM
BC250718017
Not Available
2
AXE ROUE AVANT 208MM
BE53000R3011
Not Available
3
FR. TIRE HOLDING BUSHING EC-2010 8X12X12
BE555102510
Not Available
4
SPY ROUE AV EC 30x42x7
BE250418057
Not Available
5
Front Wheel Bearing 04 Pro
ME120136055
Not Available
6
DISQUE AVANT PETALE EC
BE520002509
Not Available
7
JEU PLAQUETTE AV.EC STD NISSIN
BE620652508
Not Available
7A
GALFER FRONT BRAKE PADS KIT
BE6206525081
Not Available
8
ULS TORX 6X14
T0566014
Not Available
9
PLATINE PLAQUETTE EC 08
BE620112508
Not Available
10
SUPPORT ETRIER AV EC 08
BE620102508
Not Available
11
ETRIER FREIN AVANT EC 07/17
BE250722000
Not Available
12
DURITE FREIN AVANT EC
BE250422002
Not Available
13
VIS BANJO R
BC25722006
Not Available
14
RONDELLE CUIVRE
BE25622007
Not Available
15
VIS AXE ROUE AV EC 07
BE250718026
Not Available
16
LAMELLE DE PLAQUETTE DE FREIN
BE620122508
Not Available
17
ENTRETOISE INT.MOYEU AVANT
BE250418058
Not Available
18
MOYEU ROUE AVANT EC
BE250418007
Not Available
18
MOYEU ROUE AVANT EC 2014
BE54110GGCAB1
Not Available
19
CERCLAGE NOIR 1,60X21 EC 2014
BE54000GGCAW1
Not Available
19
CERCLAGE NOIR 1,60X21 ECF 2014
BE540003013
Not Available
19A
FRONT SPOKED RIM ASSY
BE540003013CT
Not Available
19A
ROUE COMPLETE AV EC 2014
BE54000CTCAW1
Not Available
20
ECROU DE RAYON AV ****
BE250218010
Not Available
21
Nut selflocking 8mm
T2108001
$2,59 Unit Price incl. VAT
22
Tire holder
BE505002509
$26,30 Unit Price incl. VAT
23
RAYON AVANT AVEC ECROU EC 2008
BE542002508
Not Available
23
RAYON AVANT EC 243x3.5 EC 18 GP
BE54200GGCAW1
Not Available
24
FRONT TIRE 90/90-21
BE501002511
Not Available
25
FRONT AIR HOSE 21
BE502002511
50309075000
Not Available
26
FRONT RIM BAND 1.60 1.85x21
BE503002511
A53509073000
$33,02 Unit Price incl. VAT
27
KIT REPARATION PISTON FREIN
BE620422508
Not Available
30
AXE ETRIER AV NISSIN
BE250022034
Not Available
31
VIS CLAVETTE ETRIER AV EC
BE250022043
Not Available
32
KIT PURGE ETRIER
BE620602508
Not Available
33
CACHE POUS. ETRIER GRAND MOD. EC
BE620692508
Not Available
34
AXE PLAQUETTE AV NISSIN EC
BE250022041
Not Available
35
ENTRETOISE ROUE AVANT
BC250418019
Not Available
36
BOUCHON PURGE ETRIER FREIN
BE250022055
Not Available
37
VIS BOUCHON AXE PLAQUETTE
BE250022095
Not Available
38
VIS M8X30 12,9
T0208030
Not Available
39
SYSTEME FREIN AVT COMPLET EC
BE250422108
Not Available
40
TIRE AXE AVANT EC 2011
BE536002511
Not Available
42
CACHE POUS. ETRIER PETIT MOD. EC
BE620682508
Not Available

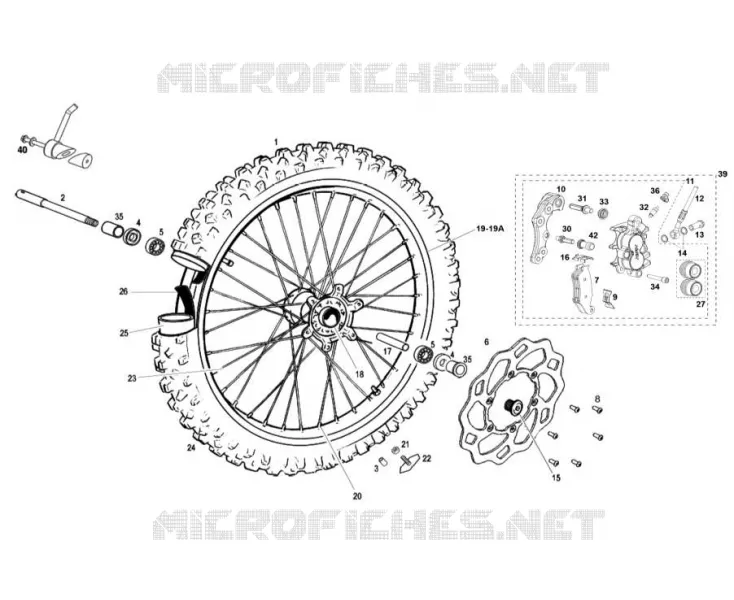

Find the detailed FRONT WHEEL / BRAKE GASGAS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GASGAS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
