SHOCK ABSORBER (PARTS) for GASGAS MC 85 17/14 from 2023

SHOCK ABSORBER (PARTS)

1

Monoshock case M53x1 with pipe cpl.

46181242S6

$449,01 Unit Price incl. VAT

2

PLUG SCREW M5X6 CPL.

36120151S

36120151ST

Not Available

3

O-ring 5,28x1,78 NBR70 black

46810893

S208600003000FB

Not Available

4

HS cylinder-head screw R1/8 l8

50180095

$3,71 Unit Price incl. VAT

5

Ball joint bearing kit 12mm

RP10011

46180007 x2 , R12012T

Not Available

6

Sticker XACT 85 SX

52000230

$49,32 Unit Price incl. VAT

7

Compression cpl.

50181101S40

$142,42 Unit Price incl. VAT

8

O-ring 27x1,5 Viton70 green ISO 3601-3S

50180217

$3,13 Unit Price incl. VAT

9

Spring (59) 215 35 N/MM D=9.25

91010240S

$200,19 Unit Price incl. VAT

9

Mainspring (59) 45-215 damper white

91010201

$200,19 Unit Price incl. VAT

9

Mainspring (59) 50-215 damper white

91010080

$200,19 Unit Price incl. VAT

9

Spring 55 N/MM

91010170S

$200,19 Unit Price incl. VAT

9

SPRING (59) 215 30 N/MM

91010271S

$200,19 Unit Price incl. VAT

9

SPRING (59) 215 40 N/MM D=9,5

91010161S

$200,19 Unit Price incl. VAT

10

Plastic Spring Retainer D46 cpl.

46181382S

$49,75 Unit Price incl. VAT

11

SPRING CUP SET PDS 17

RP10005

$49,75 Unit Price incl. VAT

12

Round-wire snap ring 49x1,5

46810010

$4,71 Unit Price incl. VAT

13

Cover 46,12x15 h5,5 red

46181351

$42,32 Unit Price incl. VAT

14

Rubber pad 17x48x55

46181237

$29,59 Unit Price incl. VAT

15

Bottom part M18x1 h54,5 cpl.

46181301S3

$402,25 Unit Price incl. VAT

17

Sealholder 46x28 cpl.

46180669S

S614620000S0100

Not Available

18

Nut PDS M10x1 h17,2 WAF19 cpl.

46181365S

46181659S

Not Available

19

Piston 15,4x35,4x6

46181416

$21,44 Unit Price incl. VAT

20

Bushing 10x17x21

46181561

$9,14 Unit Price incl. VAT

21

Piston rod nut M12x1

46810474

$8,00 Unit Price incl. VAT

22

Washer 12x24x2,5

46811258

$37,88 Unit Price incl. VAT

23

Piston 12x46x20 cpl.

46181328S

$104,38 Unit Price incl. VAT

24

Rebound disc 12x36x4 h0

46181194

$19,72 Unit Price incl. VAT

98

Shock absorber fluid 5 LT

50180751S1

$228,79 Unit Price incl. VAT

99

Repairing kit shock absorber PDS 19

RP10020

RP10020T

Not Available

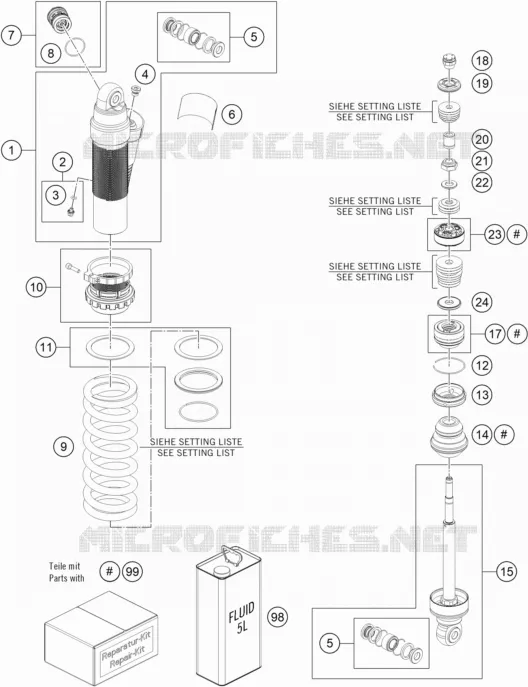

Find the detailed SHOCK ABSORBER (PARTS) GASGAS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GASGAS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
