SWINGARM for GASGAS TXT 300 REPLICA FACTORY 30TH from 2014

Screw M10x63

BT35000013011

$24,44 Unit Price incl. VAT

SHOCK ABSORBER, 3V REIGER 2013

BT300023013

Not Available

Bolt 10x46

T0310046

0900001004800

$9,14 Unit Price incl. VAT

Rear Caliper Guide Bolt

BT280222049

Not Available

S/Arm Shaft Bolt

BT280212009

Not Available

Gasket swingarm pivot

C220001

$3,89 Unit Price incl. VAT

SWINGARM PIVOT BISHING PRO

BT280212032

Not Available

KICKSTAND TXT

BT280712010

Not Available

SWINGARM BUSHING TXT

BT280212108

Not Available

SWINGARM SHAFT TITANIUM

BT44500R3009

Not Available

BRAS OSCILLANT TXT FACTORY 2014

BT40000CTCBN1

Not Available

CHAIN GUIDE, TXT RAGA 2011

BT42040RA3011

$27,73 Unit Price incl. VAT

FRT. SPROCKET TXT (2 screw)

BT280236021

Not Available

CHAIN BUFFER FRONT TXT

BT280412015

Not Available

Buttom head screw 5x12

T0505012

$2,59 Unit Price incl. VAT

Rivet, Aluminum 5x20

T4505020

Not Available

PROTECTOR, SPROCKET TXT

BT57350RA3011

Not Available

Screw 4.2x13

T259349

$2,59 Unit Price incl. VAT

D/bone Nut 90-99 Nylock 1.5mm thread

T2110001

Not Available

Washer 10,5,x26x0,5

T4001026

$3,89 Unit Price incl. VAT

Bushing Linking 10mm

BT27712005

$25,44 Unit Price incl. VAT

Gasket 15x21x2

C230001

$3,89 Unit Price incl. VAT

Bearing

BT27714009

$10,28 Unit Price incl. VAT

TAMPON AMORTISSEUR REIGER 3V

BT311003013

Not Available

Screw 8x38

T0118038

$3,89 Unit Price incl. VAT

Rear Linkage Spacer

BT27914016

Not Available

Nut 8mm DIN 982

T2108002

$2,59 Unit Price incl. VAT

LINKAGE BUSHING

BT27914014

Not Available

CTO CHAIN TENSIONER TXT

BT42000RCT3009

Not Available

Chain guide

BT42010RA3010

$29,30 Unit Price incl. VAT

Chain Tensioner Pivot Bushing

B560000

Not Available

95 Chain Tensr Spring

M122000

Not Available

ALLEN BOLT 8x30

T0408030

Not Available

COMPLETE ROCKER ARM, TRIAL RAGA

BT30000083012

Not Available

Screw reas suspension 10x80

T0210080

09000010080U0S , 55530044000

Not Available

Bushing Linking 8mm

BT27712014

$25,44 Unit Price incl. VAT

Gasket

C230000

$3,89 Unit Price incl. VAT

Special Screw Allen m10x125 12.9

BT35000033012

Not Available

ROD SET TRIAL 2012 LINK 1

BT30000063012

Not Available

NUT 10mm (1.25)

T3110002

Not Available

Special screw 8x8

T0310808

$12,71 Unit Price incl. VAT

SIDE STAND HOLDER

BT14210R3009

Not Available

Bushing

BT27712011

$9,85 Unit Price incl. VAT

Screw 8x14

T0308014

$5,19 Unit Price incl. VAT

Spring side stand

BT14250GG-CAT-1

$14,57 Unit Price incl. VAT

SPACER

BE250714036

Not Available

Allen Bolt 8X25

T0308025

Not Available

Seat/Airbox Bolt Pro 6x16 c/sunk

T0406016N

Not Available

Bracket

BT280312025H

$17,86 Unit Price incl. VAT

Screw 8x20

T0508020

$3,89 Unit Price incl. VAT

Washer 8x16x1,5

T4008016

$2,59 Unit Price incl. VAT

BUSHING, S/ARM SHAFT COVER

BT43000R3009

Not Available

O-RING CALIPER CLUTCH25,12X1,78 NBR

MIT50032063

Not Available

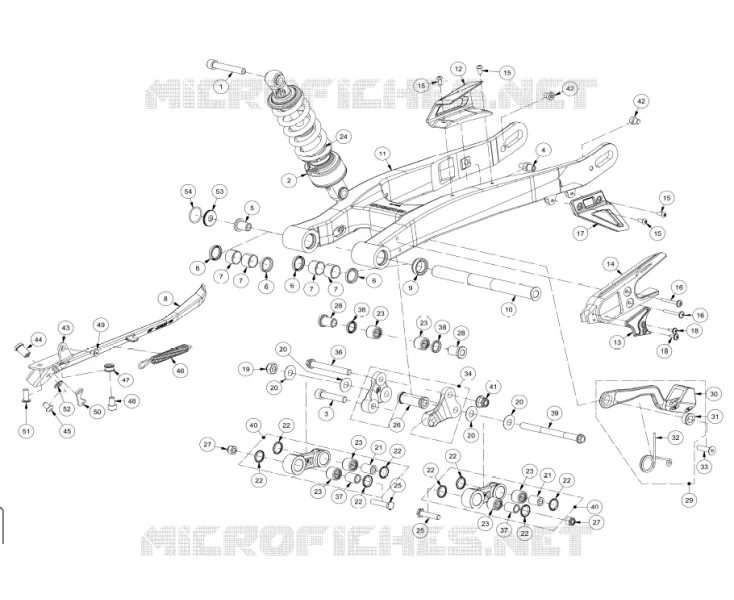

Find the detailed SWINGARM GASGAS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GASGAS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for TXT 300 REPLICA FACTORY 30TH

GASGAS TXT 300 REPLICA FACTORY 30TH 2014

TXT 300 REPLICA FACTORY 30TH

Model : REPLICA FACTORY

Engine capacity : 300

Year : 2014
