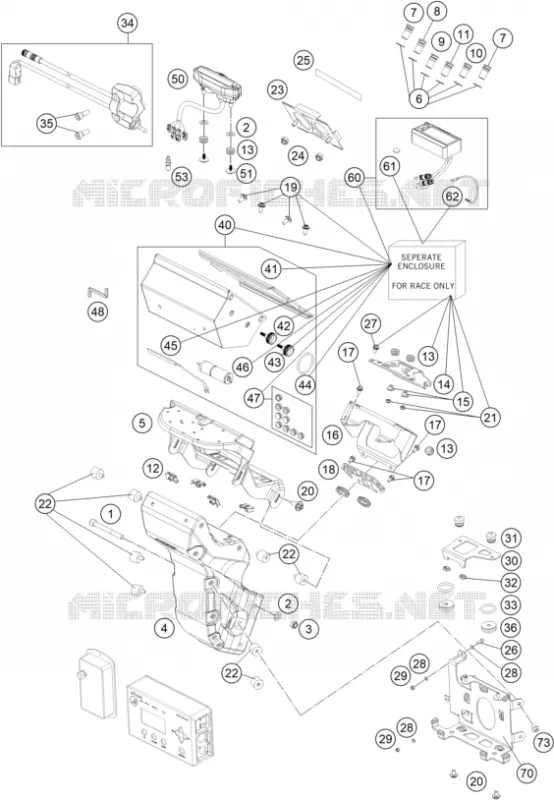

IGNITION SWITCH
1
2
2
3
4
5
6
7
7
8
9
10
11
12
13
13
13
14
15
16
17
17
17
18
19
20
20
21
22
22
22
23
24
25
26
27
28
28
28
29
29
30
31
32
33
34
35
36
40
41
42
43
44
45
46
47
48
50
51
53
60
61
62
70
73
1
AH SCREW DIN0912-M 8X75
0912080753
Not Available
2
washer DIN 125 A -8.4
0125080003
$2,59 Unit Price incl. VAT
3
SELF LOCKING NUT DIN0985-M 8
0985080003
$3,89 Unit Price incl. VAT
4
navigation tower
76712089000
Not Available
5
Carrier for roadbook bracket Z
76712091100
Not Available
6
retaining ring DIN 471 14x1
0471140100
$2,59 Unit Price incl. VAT
7
INDICATOR LIGHT RESERVE
81214086000
$11,71 Unit Price incl. VAT
8
TEMPERATURE WARN. LIGHT RED'98
58011022400
$10,00 Unit Price incl. VAT
9
H.BEAM INDICATOR LIGHT BLUE'98
58011021300
$10,14 Unit Price incl. VAT
10
OIL INDICATOR LIGHT RED
58011025000
$9,85 Unit Price incl. VAT
11
FLASHER INDICAT.LIGHT GREEN'98
58011024300
$10,28 Unit Price incl. VAT
12
clip nut M6
54603048100
$6,49 Unit Price incl. VAT
13
rubber grommet D=8mm open
31008060000
$3,89 Unit Price incl. VAT
14
ICO retaining bracket ASSY
76712073000
Not Available
15
BUSHING
76408001004
Not Available
16
ICO connector plate ASSY
76712069000
Not Available
17
HH collar screw M6x12 TX30
0025060126
$5,19 Unit Price incl. VAT
18
ICO plug sheet
76712069020
Not Available
19
HH collar screw M6x13 TX30
0024060136
$5,19 Unit Price incl. VAT
20
HH COLLAR SCREW M6X10 TX30
0024060106
$5,19 Unit Price incl. VAT
21
SELF LOCKING NUT DIN0985-M 5
0985050003
$3,89 Unit Price incl. VAT
22
silentbloc 20x15-M6x10-(1)
43205062100
$21,29 Unit Price incl. VAT
23
Bracket GPS
76712092000
Not Available
24
STOP NUT M6 DIN6926 A2-70
0926060000
$5,19 Unit Price incl. VAT
25
Strap
76712092030
Not Available
26
AH SCREW DIN0912-M 4X12
0912040123
$1,35 Unit Price incl. VAT
27
HH collar screw M5x10 TX30
0025050106
$2,59 Unit Price incl. VAT
28
WASHER DIN0125-A 4,0
0125040003
$0,13 Unit Price incl. VAT
29
SELF LOCKING NUT DIN0985-M 4
0985040003
$2,59 Unit Price incl. VAT
30
Locking lever
76712084050M02
Not Available
31
Knurled handle
76406006001
Not Available
32
O-ring 6x4
0036010640000
Not Available
33
O-ring 23x4
0036012340000
Not Available
34
Roadbook switch cmpl.
76712075044
Not Available
35
AH SCREW DIN0912-M 6X16
0912060163
$2,59 Unit Price incl. VAT
36
Positioning aid
76712084030M02
Not Available
40
Roadbook
76712098100
Not Available
41
Roadbook cover cmpl.
76712098150
Not Available
42
Top handle
76712098193
Not Available
43
Bottom grip
76712098192
Not Available
44
O-ring 42x3 - NBR
76712098195
Not Available
45
Illumination LED
76712098191
Not Available
46
Electric motor
76712098194
Not Available
47
Set of bushings
76712098144
Not Available
48
Roadbook tool
76712098190
Not Available
50
Speedometer digital km/h f. 21
77714069600
$388,95 Unit Price incl. VAT
51
EJOT DELTA PT SCREW 45X12-Z
0081645121
$2,59 Unit Price incl. VAT
53
CABLE FOR DIGITAL SPEEDOM. 06
54814068100
$120,68 Unit Price incl. VAT
60
Tripmaster ICO kpl.
76712085066
Not Available
61
BATTERY FOR ICO TRIPMASTER 04
58512085160
$13,86 Unit Price incl. VAT
62
Wheel sensor, ICO tripmaster
76712085030
Not Available
70
Iritack 2020 bracket cmpl.
76712084100
Not Available
73
AH OVAL SCREW ISO 7380 M 6X8
0902060083
$2,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

List of machines using this diagram

4 stroke 450 2024
