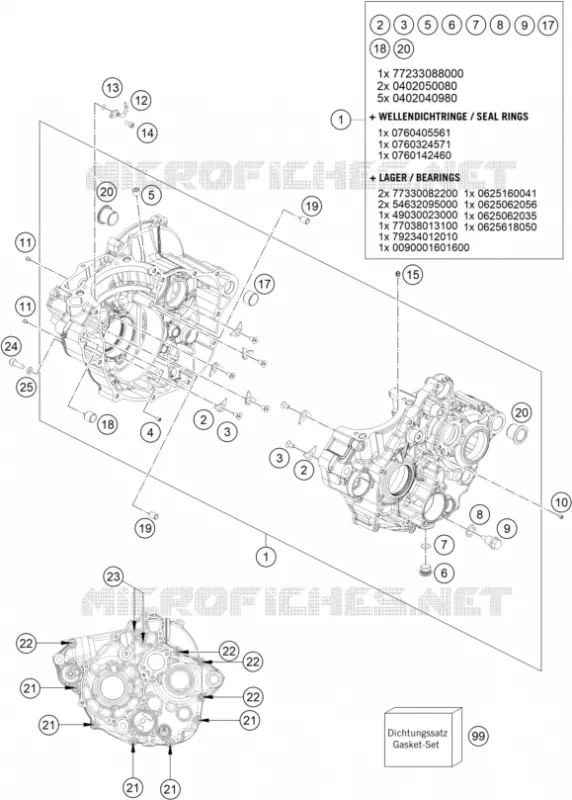

CRANKCASE
3
3
3
21
21
21
21
21
22
22
22
22
23
13
7
7
5
5
14
18
18
9
9
25
8
8
19
19
17
17
11
11
15
2
2
2
24
6
6
99
20
20
20
1
1
4
10
12
1
Engine case cmpl.
79330000144
$3 153,14 Unit Price incl. VAT
2
RETAINING PLATE F. CS BEARING
75030085000
$5,75 Unit Price incl. VAT
3
INT. TORX FLAT HEAD M5X12 T25
0019050121S
$3,89 Unit Price incl. VAT
4
Nozzle
79330058040
$13,72 Unit Price incl. VAT
5
pipe plug DIN 906 M10x1
0906100100
$6,49 Unit Price incl. VAT
6
HOLDING BOLT M14X1,5
78036081000
$10,37 Unit Price incl. VAT
7
O-RING 1,5x11 SILICON
0770110015
$8,00 Unit Price incl. VAT
8
CU-SEAL RING DIN7603-12X18X1,5
58038022000
$3,89 Unit Price incl. VAT
9
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$16,22 Unit Price incl. VAT
10
OIL JET ''60'' M4
80030058060
$18,15 Unit Price incl. VAT
11
JET 100 BING(44-031/180) M4
59030058000
$6,49 Unit Price incl. VAT
12
OIL JET ANGLED 50
81230164050
$17,29 Unit Price incl. VAT
13
O-RING 3,5X2,00 NBR
0770035020
$2,59 Unit Price incl. VAT
14
Cylinder screw DIN 912-M4x10-8
0912040103S
$2,59 Unit Price incl. VAT
15
oil jet 50 M5
60030063050
$14,43 Unit Price incl. VAT
17
DOWEL 17 X 19 X 12
59030024000
$8,00 Unit Price incl. VAT
18
DOWEL BUSHING 13,8X11X12
54630027000
$10,57 Unit Price incl. VAT
19
dowel sleeve 6x8x11.5
59030023000
$5,02 Unit Price incl. VAT
20
Housing bush
79230010000
$18,15 Unit Price incl. VAT
21
HH collar screw M6x55 TX30
0025060556
$5,19 Unit Price incl. VAT
22
HH COLLAR SCREW M6X65 TX30
0025060656
$3,89 Unit Price incl. VAT
23
HH COLLAR SCREW M6X70 TX30
0025060706
$5,19 Unit Price incl. VAT
24
LOCATING SCREW M8 L=25
77730080000
$6,49 Unit Price incl. VAT
25
CU-SEAL RING 8 X 14 X 3
58030081000
$3,89 Unit Price incl. VAT
99
Engine sealing kit 250 Enduro
79130099000
$457,87 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
