1
Engine displacement
110
2
Year
2006
3
Trim
k-110
4
Parts Catalog

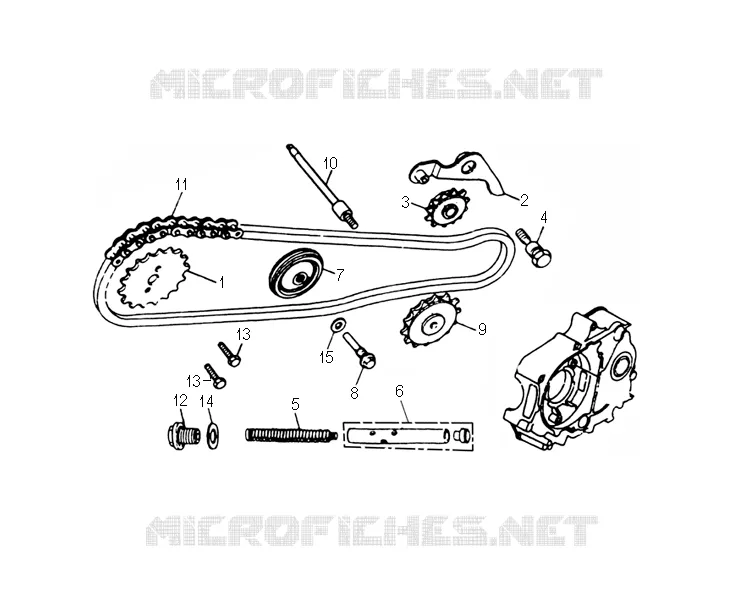

TIMING CHAIN / TENSIONER
5
Parts Diagram
Parts Catalog
TIMING CHAIN / TENSIONER
by
CAMSHAFT / VALVES
TIMING CHAIN / TENSIONER
10-1
PINON CADENA DISTRIBUCION K1 110
101431
Not Available
10-2
ARM COMP., CAM CHAIN TENSIONER
104250
Not Available
10-3
ROLLER, CAM CHAIN TENSIONER
104296
Not Available
10-4
PIVOT, CAM CHAIN TENSIONER
104295
Not Available
10-5
SPRING, CAM CHAIN TENSIONER
104299
Not Available
10-6
ROD COMP., CAM CHAIN TENSIONER PUSH
104240
Not Available
10-7
ROLLER COMP., CAM CHAIN GUIDE
104297
Not Available
10-8
PIN, CAM CHAIN GUIDE ROLLER
104298
Not Available
10-9
SPROCKET,CAM CHAIN GUIDE
104199
Not Available
10-10
SPINDLE, CAM CHAIN GUIDE SPROCKET
105196
Not Available
10-11
CHAIN, CAM 90
104141
Not Available
10-12
BOLT, SEALING M14�1.5
104233
Not Available
10-13
BOLT, KNOCK M5�12
104132
Not Available
10-14
WASHER, SEALING ?14
104234
Not Available
10-15
WASHER ?8.5�15�1.5
T219048E1515
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
