by

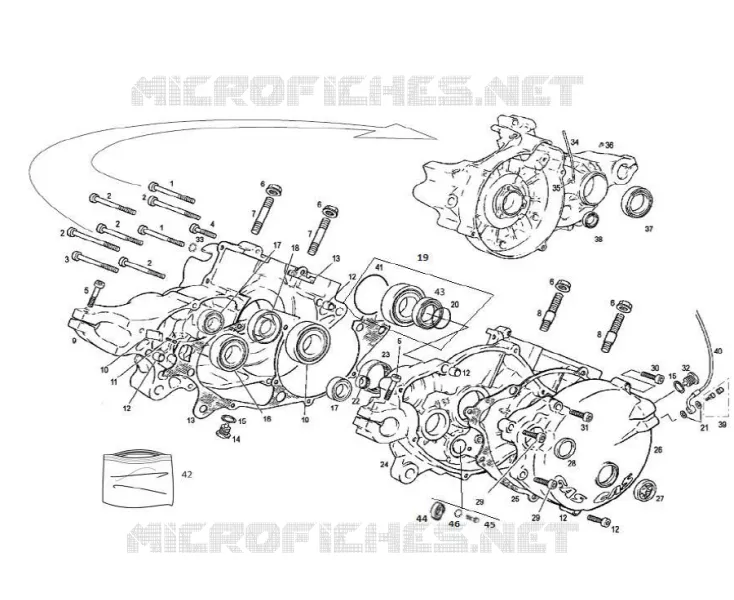

CRANKCASE
1
VIS
T0315065
Not Available
2
bolt socket head 5x55 DIN 912
T0305055
$3,89 Unit Price incl. VAT
3
5X75 BLACK ALLEN BOLT
T0315075
Not Available
4
VIS BTR 5X35
T0305035
Not Available
5
Screw 5x20
T0305020
$2,59 Unit Price incl. VAT
6
Nut 10x1,5 8.8
M01613001
$2,59 Unit Price incl. VAT
7
Stud
MT280216023
$11,28 Unit Price incl. VAT
8
Stud
MT280216056
$11,28 Unit Price incl. VAT
10
Stop sheet kickstarter
MT280226011
$14,59 Unit Price incl. VAT
11
Screw 5x16
T0305016
$2,59 Unit Price incl. VAT
12
Dowel
M01017000
$13,00 Unit Price incl. VAT
13
Engine case gasket
MT280344001
$9,28 Unit Price incl. VAT
14
Oil plug
ME25610017
$15,57 Unit Price incl. VAT
15
Washer 12x18x2
MT280410030
$3,89 Unit Price incl. VAT
16
RLT 25x47x12 6005 ZZ
RLT022
Not Available
17
Bearing 15x32x9 2RSL
MT280236160
$15,86 Unit Price incl. VAT
18
Shaft seal ring
MT280212009
$19,44 Unit Price incl. VAT
19
RLT VILO COMPLET TXT *
MT31000GG-CJD-1
$129,73 Unit Price incl. VAT
20
O-ring countershaft 25x1,5
MT280212025
$2,59 Unit Price incl. VAT
21
WASHER
BT280422007
Not Available
22
Bearing kickstarter shaft
MT280226067
$30,73 Unit Price incl. VAT
23
Bearing 34x45x12
MT280236158
$17,86 Unit Price incl. VAT
24
JEU CARTER MOT.250/280/300TXT.17
MT10000CTCBN1
$838,49 Unit Price incl. VAT
25
Gasket clutch cover
MT280244002
$26,16 Unit Price incl. VAT
26
CARTER EMBRAYAGE TXT 250/300 15
MT65000CT-CBN-1
$252,10 Unit Price incl. VAT
27
Inspection glass
MFS400110015
$25,30 Unit Price incl. VAT
28
Shaft seal ring kickstarter
MT280226016
$5,19 Unit Price incl. VAT
29
Screw 5x25
T0305025
$2,59 Unit Price incl. VAT
30
Screw M5x30
T0305030
$2,59 Unit Price incl. VAT
31
Screw M5x40
T0305040
$2,59 Unit Price incl. VAT
32
VIS REMPLISSAGE HUILE
M01016002
Not Available
33
Washer
T4000509
$3,89 Unit Price incl. VAT
34
Breather tube
MT280210012
$9,28 Unit Price incl. VAT
35
Connector Expansion
MIT50010012
$9,00 Unit Price incl. VAT
36
BOUCHON HUILE
MT280210021
Not Available
37
Shaft seal ring 30x40x7
ME25636024
$8,00 Unit Price incl. VAT
38
Shaft seal ring 12x20x5
MT280236048
$5,19 Unit Price incl. VAT
39
Banjo bolt
BT280522106
$21,01 Unit Price incl. VAT
40
DURITE EMBRAYAGE TXT 05/15
BT280522003
$76,06 Unit Price incl. VAT
41
TORIC ROULEMENT VILO
MT280512028
$6,81 Unit Price incl. VAT
42
Gasket kit
MT280244100
$233,65 Unit Price incl. VAT
43
SPY INT.ROULEMENT VILO 35X47X6
MT2804120061
$56,08 Unit Price incl. VAT
44
Bearing 6000 C3Z
ME25610010
$12,00 Unit Price incl. VAT
45
VIS BTR M5X12
T0305012
Not Available
46
Washer 5x15x1,5
T4005015
$2,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
