1
Engine displacement
450
2
Year
2003
3
Trim
wild-hp-450
4
Parts Catalog

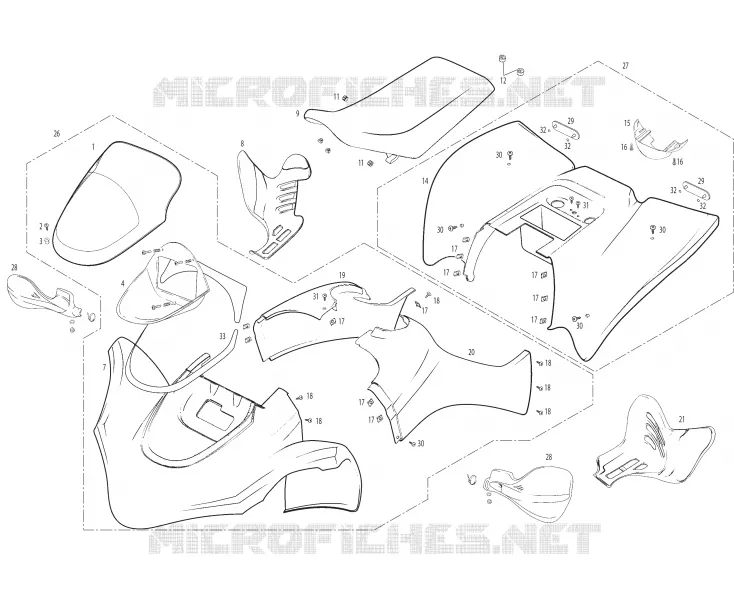

PLASTICS
5
Parts Diagram
Parts Catalog
HANDLEBAR
by
REAR WHEEL
PLASTICS
1
FRONT HEADLIGHT COVER
XXXBQ300220032
Not Available
2
5X20 BLACK ULS BOLT
XXXT0505020
Not Available
3
HEADLIGHT COVER SUBJECTION RUBBER
XXXBQ300214066
Not Available
4
FRONT HEADLIGHT SUPPORT
XXXBQ300220022
Not Available
7
FRONT FENDER
XXXBQ300220006
Not Available
8
RIGHT FEET PROTECTOR
XXXBQ300214501
Not Available
9
SEAT
XXXBQ300210015
Not Available
11
SEAT TO FRAME HOLDING RUBBER
XXXBQ300210155
Not Available
12
SEAT BASE RUBBER
XXXBQ300210156
Not Available
14
REAR FENDER
XXXBQ300220007
Not Available
15
REAR LIGHT SUPPORT
XXXBQ300234215
Not Available
16
6X16 ULS BOLT WITH WASHER
XXXT0556016
Not Available
17
M6 FAST NUT
XXXT2606000
Not Available
18
ULS SCREW 6X14
XXXT0556014
Not Available
19
LATERAL RIGHT COVER
XXXBQ450320012
Not Available
20
LATERAL LEFT COVER
XXXBQ450320013
Not Available
21
LEFT FEET PROTECTOR
XXXBQ300214502
Not Available
26
FRONT PLASTIC SET
XXXBQ450320041
Not Available
27
REAR PLASTIC SET
XXXBQ450320042
Not Available
28
HANDS PROTECTOR SET
XXXBTL400220034GC
Not Available
29
CATADRIOPTIC
XXXBQ300234125
Not Available
30
6X20 ULS WITH WASHER
XXXT0556020
Not Available
31
6X25 ULS WITH WASHER
XXXT0556025
Not Available
32
CATADRIOPTIC STAPLE
XXXBQ300234126
Not Available
33
FRONT HEADLIGHT COVER GASKET
XXXBQ300420062
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
