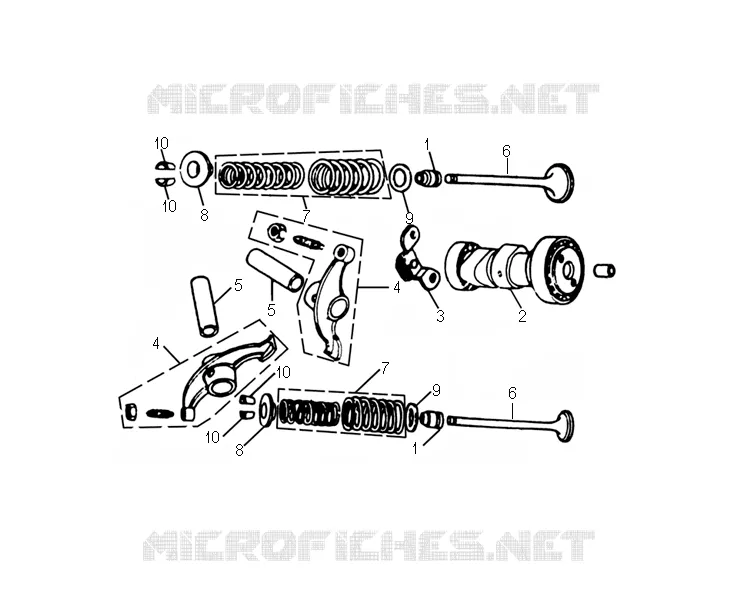

CAMSHAFT / VALVES

9-1

SEAL, VALVE STEM

104399

Not Available

9-2

ARBOL DE LEVAS 9-2 K1

104110

Not Available

9-3

PLATE COMP., STOPPER

102280

Not Available

9-4

ARM COMP., VALVE ROCKER

104411

Not Available

9-5

SHAFT, VALVE ROCKER ARM

104427

Not Available

9-6

VALVE COMP

104310

Not Available

9-7

SPRING COMP., VALVE

104320

Not Available

9-8

RETAINER, VALVE SPRING

104395

Not Available

9-9

SEAT, VALVE SPRING OUTER

104396

Not Available

9-10

COTTER, VALVE

104398

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

List of machines using this diagram

K2 110 2006

View
