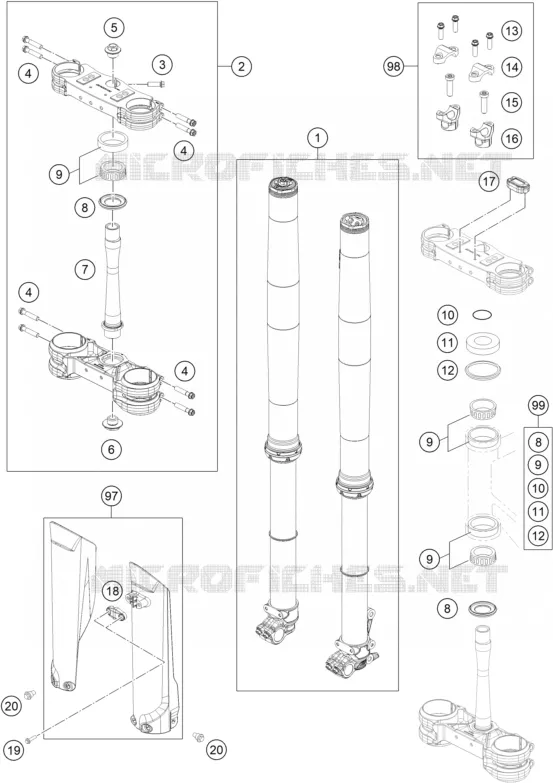

FRONT FORK / TRIPLE CLAMP
1
2
3
5
6
7
8
8
8
12
12
97
98
99
4
4
4
4
9
9
9
9
10
10
11
11
13
14
15
16
17
18
19
20
20
16
16
1
Fork 450 SX-F 2021 US
34188U5901
$3 915,72 Unit Price incl. VAT
2
Triple clamp cmpl.
79701999021FAA
$878,79 Unit Price incl. VAT
3
HH COLLAR SCREW M8X25 WS=10
0015080256S
$4,71 Unit Price incl. VAT
4
HH COLLAR SCREW M8X40 TX40
0025080406
$6,28 Unit Price incl. VAT
5
AXLESCREW M20X1.5 SW17
70009082000
$14,43 Unit Price incl. VAT
6
STE.HEAD SCR. M20X1,5 WS=27 SL
54801036100
$22,44 Unit Price incl. VAT
7
Steering stem
79101933000
$128,69 Unit Price incl. VAT
8
O-RING SUPPORT W. SEALING LIP
77701084000
$29,59 Unit Price incl. VAT
9
TAPERED ROLLER BEARING CPL. 06
54201081100
$78,07 Unit Price incl. VAT
10
O-RING 25X3,55 NBR70 05
0770025035
$2,59 Unit Price incl. VAT
11
STEERING HEAD COVER
78101086000
$9,28 Unit Price incl. VAT
12
STEARING HEAD GASKET TOP
54601184000
$10,86 Unit Price incl. VAT
13
HH collar screw M8x25
0025080256
$3,13 Unit Price incl. VAT
14
HANDLEBAR CLAMP 28MM
77201038000
$38,31 Unit Price incl. VAT
15
AH-COLLAR SCREW M10X35 ISA45
0032100356S
$6,49 Unit Price incl. VAT
16
HANDLEB.SUPP. D=28MM H=32MM 05
59401039032
$55,90 Unit Price incl. VAT
16
HANDLEB.SUPP. D=28MM H=42MM 05
59401039042
$55,47 Unit Price incl. VAT
16
HANDLEB.SUPP. D=28MM H=37MM 05
59401039037
$52,18 Unit Price incl. VAT
17
Hourmeter
A54012920050
Not Available
18
Clamp for brake hose
77701085100FB
$3,89 Unit Price incl. VAT
19
SCREW F. PLASTIC K60X20AL SW6
0017060206
$5,19 Unit Price incl. VAT
20
SPECIAL SCREW M6X12,5 WS=8
59001092050
$3,89 Unit Price incl. VAT
97
Fork protector kit MC 450F Tro
77701094100FBA
$126,11 Unit Price incl. VAT
98
HANDLEBAR SUPPORT KIT D28/H37
00050000921
$165,30 Unit Price incl. VAT
99
Stearing Head repair kit
54201081144
$136,12 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
