by

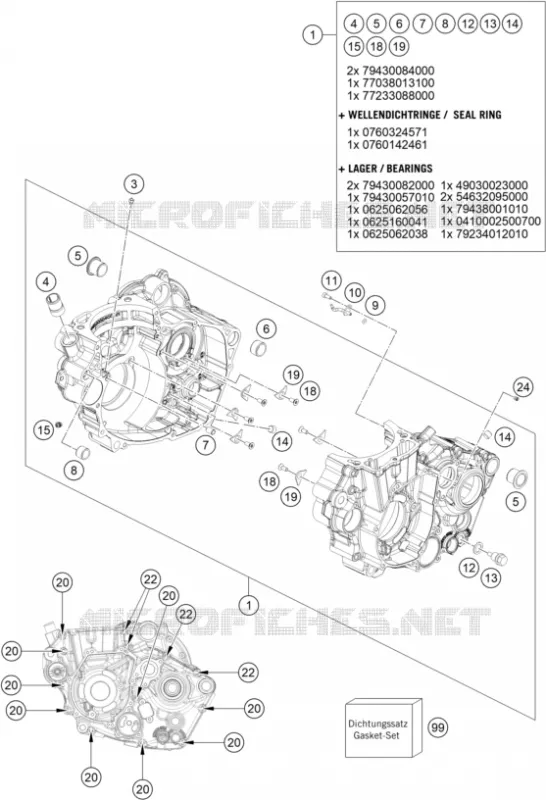

CRANKCASE
18
18
18
20
20
20
20
20
20
20
20
20
22
22
22
9
14
14
14
11
8
8
6
6
4
4
13
13
12
12
7
7
24
15
15
3
19
19
19
5
5
5
10
1
1
99
1
engine case cpl.
A48030000044
$1 105,52 Unit Price incl. VAT
3
oil jet 70 M5
60030063070
$13,14 Unit Price incl. VAT
4
SCREW IN NOZZLE M20X1,5
58030010200
$13,57 Unit Price incl. VAT
5
Housing bush
79230010000
$18,15 Unit Price incl. VAT
6
Dowel, 21x12
54830027100
$8,00 Unit Price incl. VAT
7
Dowel, 6x8x11.5
59030023100
$2,59 Unit Price incl. VAT
8
DOWEL BUSHING 13,8X11X12
54630027000
$10,57 Unit Price incl. VAT
9
O-RING 3,5X2,00 NBR
0770035020
$2,59 Unit Price incl. VAT
10
OIL JET ANGLED 70
81230064000
$18,58 Unit Price incl. VAT
11
Cylinder screw DIN 912-M4x10-8
0912040103S
$2,59 Unit Price incl. VAT
12
CU-SEAL RING DIN7603-12X18X1,5
58038022000
$3,89 Unit Price incl. VAT
13
oildrain plug with magnet
58030021100
$17,29 Unit Price incl. VAT
14
pipe plug DIN 906 M10x1
0906100100
$6,49 Unit Price incl. VAT
15
SCREW PLUG
59030296000
$9,57 Unit Price incl. VAT
18
INT. TORX FLAT HEAD M5X12 T25
0019050121S
$3,89 Unit Price incl. VAT
19
Retaining bracket crankshaft b
75030085100
$2,59 Unit Price incl. VAT
20
HH COLLAR SCREW M6X65 TX30
0025060656
$3,89 Unit Price incl. VAT
22
HH COLLAR SCREW M6X80 TX30
0025060806
$3,89 Unit Price incl. VAT
24
JET 100 BING(44-031/180) M4
59030058000
$6,49 Unit Price incl. VAT
99
engine gasket kit MX 450
A48030099000
$397,53 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
