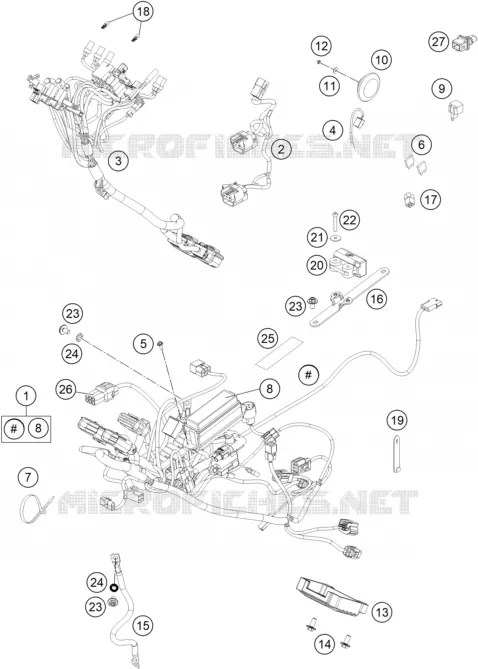

WIRING HARNESS
17
26
27
11
23
23
23
14
5
22
12
7
7
18
10
6
6
6
24
24
8
8
19
20
21
7
7
9
1
1
1
3
2
4
25
15
16
13
1
Main wiring harness
76711075100
Not Available
2
loom light
76711082000
Not Available
3
loom cockpit tower
76711081000
Not Available
4
Wiring harness horn
76711083000
Not Available
5
HH collar screw M5x10 TX30
0025050106
$2,59 Unit Price incl. VAT
6
FUSE 10 A 2000
58011109110
$3,89 Unit Price incl. VAT
6
FUSE 5 A 2003
58011109105
$3,89 Unit Price incl. VAT
6
FUSE 15 A
58011109115
$2,59 Unit Price incl. VAT
7
CABLE TIE 280MM
76311093280
Not Available
7
CABLE TIE 200/3,6MM BLACK
44011076200
$2,59 Unit Price incl. VAT
7
CABLE TIE 200MM
76311093200
$2,59 Unit Price incl. VAT
7
CABLE TIE 140/2,5MM BLACK
44011076140
$2,59 Unit Price incl. VAT
8
FUSE-BOX COVER
58511075510
$19,29 Unit Price incl. VAT
9
FLASHER UNIT
76511030000
$35,45 Unit Price incl. VAT
10
DC HORN L.E.B. 03
50311060100
$49,61 Unit Price incl. VAT
11
washer DIN 9021 A - 5.3
0021050003
$2,59 Unit Price incl. VAT
12
SELF LOCKING NUT DIN0985-M 5
0985050003
$3,89 Unit Price incl. VAT
13
VOLTAGE REGULATOR
79611034000
$294,14 Unit Price incl. VAT
14
HH collar screw M6x13 TX30
0024060136
$5,19 Unit Price incl. VAT
15
Ground wire, starter frame
76711097050
Not Available
16
Bracket, rollover sensor
76711155000
Not Available
17
Dummy plug 4-pins
000700000AN01
$13,57 Unit Price incl. VAT
18
BULB 12V 2,3W (W2X4,6D)
49111425200
$3,89 Unit Price incl. VAT
19
RUBBER CABLE TIE 75MM 03
60011093075
$8,00 Unit Price incl. VAT
20
ROLLOVER SENSOR 05
61041088000
$103,52 Unit Price incl. VAT
21
SHIM 4,3X15X1,25MM GALVANIZED
61041088050
$2,59 Unit Price incl. VAT
22
AH SCREW DIN0912-M 4X25
0912040253
$2,59 Unit Price incl. VAT
23
HH COLLAR SCREW M6X10 TX30
0024060106
$5,19 Unit Price incl. VAT
24
CONTACT WASHER M6 VSV-K6
58411098100
$3,89 Unit Price incl. VAT
25
Sticker fuse box
76711087010
Not Available
26
DUMMY PLUG 6-PIN
000700000BH01
$27,01 Unit Price incl. VAT
27
Dummy plug LV 2p/sealed
000700000LV001
$8,85 Unit Price incl. VAT
