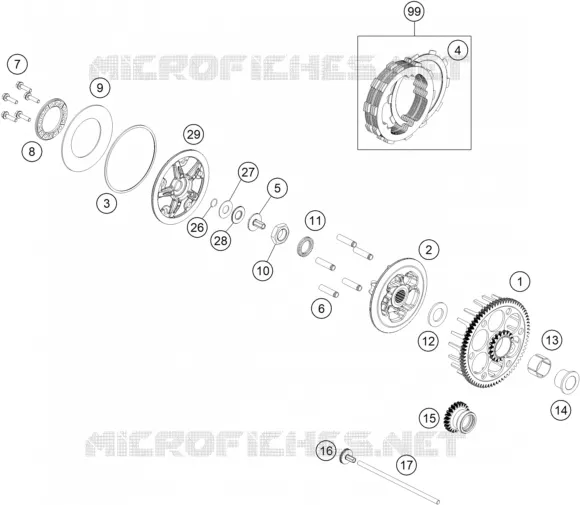

CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
5
17
26
27
28
29
99
5
5
1
clutch basket
50532001173
$441,57 Unit Price incl. VAT
2
Inner clutch hub
50532002000
$52,04 Unit Price incl. VAT
3
Inner ring
50532013000
$10,57 Unit Price incl. VAT
4
Friction plate 1.95 mm
50532011000
$29,73 Unit Price incl. VAT
6
Sleeve 7.95x31.65
50532004100
$5,19 Unit Price incl. VAT
7
HH collar screw M5x20 TX30
0025050206
$3,89 Unit Price incl. VAT
8
Spring plate
50532006000
$43,03 Unit Price incl. VAT
9
Clutch spring
50532005000
$16,86 Unit Price incl. VAT
10
Hex nut DIN0936-M18x1.5 right
0936181506
$5,19 Unit Price incl. VAT
11
Wedge lock washer 19.5x29x3.4
0252012002900
$5,19 Unit Price incl. VAT
12
Supporting plate 20x36x2.5
50532017000
$14,72 Unit Price incl. VAT
13
Needle cage K263017
0405263017
$16,72 Unit Price incl. VAT
14
Collar 20x26x19,5
50532015000
$32,02 Unit Price incl. VAT
15
Primary gear wheel 23 teeth.
A42032023023
$93,08 Unit Price incl. VAT
16
PRESSURE PIECE CPL.
78132057144
$47,03 Unit Price incl. VAT
17
Push rod
A42032054000
$17,58 Unit Price incl. VAT
26
CIRCLIP DIN7993-RW12
0993012000
$5,19 Unit Price incl. VAT
27
AXIAL WASHER AS1226 12X26X1
54637098200
$8,00 Unit Price incl. VAT
28
AXIAL NEEDLE BEARING AXK 1226
54637097200
$15,57 Unit Price incl. VAT
29
Preasure plate
50532003000
$37,88 Unit Price incl. VAT
99
Clutch disc pack
50532010033
$250,81 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
