1
Engine displacement
200
2
Year
2005
3
Trim
ec-200
4
Parts Catalog
PLASTIC
5

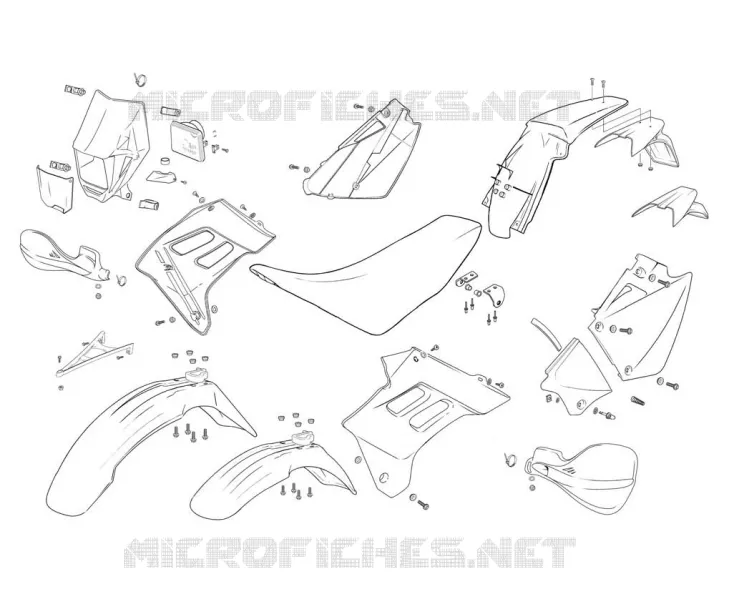

Parts Diagram
Parts Catalog
PLASTICS KIT EC 2001-2006
by
PLASTIC
PLASTIC
1
PLAQUE PHARE COMPLETE BLEUE 05
BE300520020CT
Not Available
1
PLAQUE PHARE COMPLETE BLEUE 05
BE120520020CT
Not Available
1
PLAQUE PHARE COMPLETE EC250-2005
BE250520020CT
Not Available
1
CTO.PORTAFAROS DEL.SUPERMOTARD 2
BE250520020CTSM
Not Available
2
PLUS LIVRABLE
BE250520024
Not Available
3
C/C PLAQUE PHARE
BE25636015
Not Available
4
CONTOUR PLAQUE PHARE ROUGE
BE120520020
Not Available
4
CONTOUR PLAQUE PHARE BLEU
BE300520020
Not Available
4
CONTOUR PLAQUE PHARE ROUGE
BE250520020
Not Available
4
PLUS LIVRABLE
BE250520020SM
Not Available
5
GUIDE DURITE AV ROUGE
BE250520023
Not Available
5
GUIDE DURITE AV BLEU
BE300520023
Not Available
5
HEADLAMP GUIDE COVER
BE250520023SM
Not Available
5
GUIDE DURITE AV JAUNE
BE120520023
Not Available
6
TOR.ROSC.PLAST.C.ALOM+ARAND.4.5X
BE2504200632
Not Available
7
OUIE RAD.D.BLEU EC05
BE300520012
Not Available
7
OUIE RADIATEUR SM DROITE 2004
BE250520012
Not Available
7
OUIE RADIATEUR SM DROITE 2004
BE250420012SM
Not Available
7
RIGHT SIDE RADIATOR COVER
BE200520012
Not Available
8
BAVETTE COMPETITION
BE250121003
Not Available
10
ENTRETOISE ALU VIS OUIE
BE250032060
$14,57 Unit Price incl. VAT
11
RIVET ALUMINIUM
BE25610017
Not Available
12
ENTRETOISE ALU GB AV
BE250014118
Not Available
13
RESSORT PLAQUE LAT.FILTRE
BE250528047
Not Available
14
RESSORT PLAQUE LAT.FILTRE
BE250510015
Not Available
14
HOUSSE DE SELLE EC05
BE250410015
Not Available
15
Screw 6x20 DIN 6921 GEOMET 10.
T0206020
$3,89 Unit Price incl. VAT
16
PLAQUE LAT.D.200EC 05
BE200520004
Not Available
16
PLAQUE LAT.SM 125 04 D.
BE120420004SM
Not Available
16
PLAQUE LAT.D.125EC05
BE120520004
Not Available
16
PLAQUE LAT.DROITE SM 2004
BE250420004SM
Not Available
16
PLAQUE LAT.D.300EC05
BE300520004
Not Available
16
PLAQUE LAT.SM 125 04 D.
BE250520004
Not Available
16A
PLAQUE LAT.D.BLEU 250CC
BE250520004AZ
Not Available
17
GB AR SM 04
BE250420007SM
Not Available
17
GB AR JAUNE EC05
BE120520007
Not Available
17
GB AR EC ROUGE 05
BE250520007
Not Available
17
GB AR BLEU EC05
BE300520007
Not Available
18
PLAQUE Nø GB AR
BE250420003
Not Available
19
PLAQUE LAT.GAUCHE SM 2004
BE250420005SM
Not Available
19
PLAQUE LAT.SM 125CC 04 G.
BE120420005SM
Not Available
19
PLAQUE LAT.G.125EC05
BE120520005
Not Available
19
PLAQUE LAT.G.250EC05
BE250520005
Not Available
19
PLAQUE LAT.G.300EC05
BE300520005
Not Available
19
PLAQUE LAT.G. 200 EC 05
BE200520005
Not Available
19A
PLAQUE LAT.G.BLEU EC250
BE250520005AZ
Not Available
20
OUIE RAD.G.EC05 ROUGE
BE250520013
Not Available
20
OUIE RADIATEUR GAUCHE SM 2004
BE250420013SM
Not Available
20
LEFT SIDE RADIATOR COVER
BE200520013
Not Available
20
OUIE RAD.G.BLEU EC05
BE300520013
Not Available
21
GB AV ROUGE EC 05
BE250520006
Not Available
21
GB AV SM 04 OUTLET
BE250420006SM
Not Available
21
GB AV JAUNE EC 05
BE120520006
Not Available
21
GB AV ROUGE EC 05
BE300520006
Not Available
22
VIS
T0606025
Not Available
23
VIS
T0706025
Not Available
24
ECROU AUTOBL. M6
T2106002
Not Available
25
VIS M3.5X12
BT280228035
Not Available
26
ARANDELA NYLON 6,5x16x1
T06065017
Not Available
27
HOUSSE DE SELLE EC05
BE250510055
Not Available
27
ARANDELA NYLON 6,5x16x1
BE250410055
Not Available
28
PATTE ALU SELLE D
BE250010019
Not Available
29
PATTE ALU SELLE G
BE250010020
Not Available
30
AGRAPHE VIS DZUS PLAQUE LAT
BE250128026
Not Available
31
FAST-LOCKING SCREW
BE250128027
Not Available
33
ECROU PRISONNIER D 6
T2706000
Not Available
34
JEU PROTEGE MAINS TXT
BTL400220034GC
Not Available
35
VIS M6X16 8,8
T0206016
Not Available
36
SUPPORT OPTIQUE EC 05
BE250520028
Not Available
37
VIS M3X9
T1003009
Not Available
38
PROTECTEUR OPTIQUE EC
BE250520071
Not Available
40
RENFORT GB AVANT ****
BE250220039
Not Available
41
PLUS LIVRABLE
T0506020
Not Available
42
Nut 6mm
T2206000
$2,59 Unit Price incl. VAT
43
PLAQUE LATERAL FILTRE A AIR
BE250128025
Not Available
43
ECROU AVEC RONDELLE
BE250428025SM
Not Available
44
Washer 5x12x1,5
T4005012
$2,59 Unit Price incl. VAT
45
RONDELLE
T6004141
Not Available
46
JOINT TRAPPE FILTRE EC
BE250228031
Not Available
47
GUIDE DURITE AV EC05
BE250520016
Not Available
48
GUIDE DURITE AV
BE25920053
Not Available
49
Special screw 6x25
T0206025
$5,19 Unit Price incl. VAT
50
RYSLAN NYLON 3.6x140
BE250022031
Not Available
51
RONDELLE OUIE RAD.EC 05
BE250511002
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
