1
Engine displacement
450
2
Year
2005
3
Trim
WILD HP 450
4
Parts Catalog
AIR FILTER
5

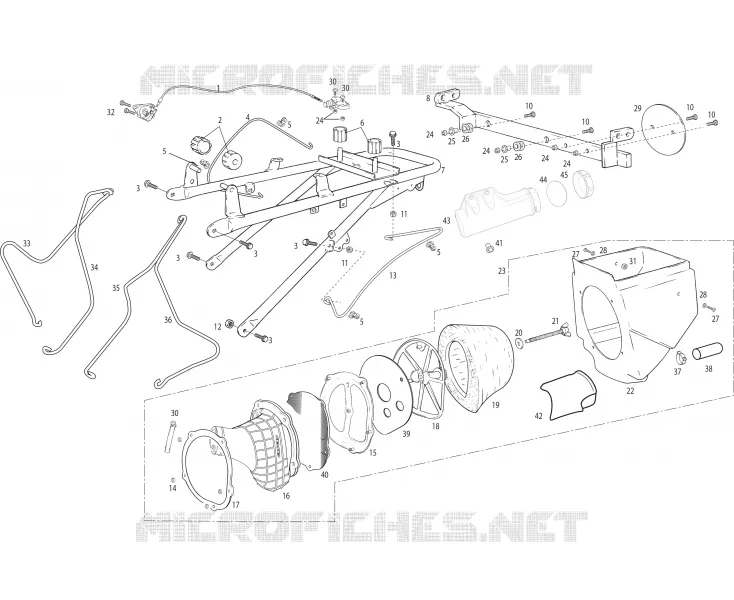

Parts Diagram
Parts Catalog
by
STICKERS
AIR FILTER
1
KIT BOUCHON RESERVOIR OUTLET
BQ300434300
Not Available
2
SILENBLOC DE SELLE AV QUAD
BQ300210155
Not Available
3
VIS M8X25 12,9
T0208025
Not Available
4
SUPPORT GB ARRIERE DROIT
BQ300220058
Not Available
5
COLLIER INOX FIXATION GB AR
BQ300220061
Not Available
6
C/C BASE DE SELLE
BQ300210156
Not Available
7
PARTIE AR CADRE QUAD 05
BQ450510001
Not Available
8
SUPPORT DE PLAQUE ARRIERE
BQ300210147
Not Available
9
Washer 6x18x1,5
T4006018
$3,89 Unit Price incl. VAT
10
Screw 6x30
T0306030
$3,89 Unit Price incl. VAT
11
PLUS LIVRABLE
T2208002
Not Available
12
Nut selflocking 8mm
T2108001
$2,59 Unit Price incl. VAT
13
SUPPORT GB ARRIERE GAUCHE
BQ300220059
Not Available
14
Nut selflocking M6
T2105000
$2,59 Unit Price incl. VAT
15
PLATINA SOP.JAULA FILTRO INT.
BQ300228020
Not Available
16
MANCHON CARBU/FILTRE FSE/QUAD
BFS450528017
Not Available
17
PLATINA SOP.JAULA FILTRO EXTERIO
BQ300228021
Not Available
18
CAGE FILTRE A AIR
BE25628002
Not Available
19
FILTRE A AIR EC 01/06
BE250128000
Not Available
20
ARANDELA PLANA6.5x16x1.5
T40060162
Not Available
21
PLUS LIVRABLE
BE25628003
Not Available
22
CAJA FILTRO QUAD 450-2003
BQ450328015
Not Available
23
CAJA FILTRO QUAD 450-2003
BQ400228001C
Not Available
24
M6 SELFLOCKING WASHER NUT
T2206001
Not Available
25
ENTRETOISE SELLE
BE25610007
Not Available
26
SILENBLOCK SILENCIEUX
BE250026005
Not Available
27
Screw 6x20
T0306020
$2,59 Unit Price incl. VAT
28
ARAN.PLANA 6X15X1.5 FIJ.MARCH.
T4006015
Not Available
29
DISCO LIMITADOR DE VELOCIDAD 45
BQ300210148
Not Available
30
Screw 6x25
T0316025
$6,49 Unit Price incl. VAT
31
Nut 6mm DIN 985
T2106001
$5,19 Unit Price incl. VAT
32
Screw 6x12
T0506012
$3,89 Unit Price incl. VAT
33
SUPPORT INT.D.PROTEC
BQ300214503D
Not Available
34
SUPPORT EXT.D.PROTEC.
BQ300214504D
Not Available
35
SUPPORT INT.G.PROTEC.
BQ300214503I
Not Available
36
SUPPORT EXT.G.PROTEC.
BQ300214504I
Not Available
37
COLLIER VALVE BOITIER FILTRE
BQ300428043
Not Available
38
VALVE BOITIER FILTRE
BQ300228041
Not Available
39
RESTRICCION FILTRO AIRE FSE-QUAD
BFS4504280142
Not Available
40
GRILLE PARE FEU FILTRE
BFS450428044
Not Available
41
CASQUILO TUBO PORTA HERRAMIENTAS
BQ450320054
Not Available
42
ADH.PROTECTOR TERMICO 60X90 TEFI
BQ450538059
Not Available
43
TOOLHOLDER TUBE
PU100038002
Not Available
44
TOOLHOLDER CAP FOAM
PU100238001
Not Available
45
TOOLHOLDER TUBE CAP
PU100038003
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
