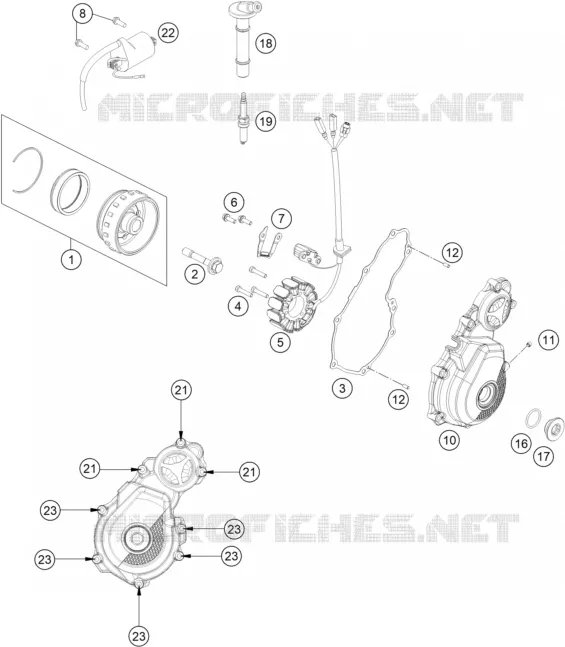

IGNITION SYSTEM
1
2
3
4
5
6
7
8
10
11
12
12
16
17
18
19
21
21
21
22
23
23
23
23
23
1
Rotor cpl.
79239105144
$308,01 Unit Price incl. VAT
2
FLYWHEEL SCREW
77339010100
$8,57 Unit Price incl. VAT
3
Ignition cover gasket
A46030040000
$13,72 Unit Price incl. VAT
4
Cap head screw DIN 6912 - M5x3
0012050303S
$2,59 Unit Price incl. VAT
5
Stator
79239104100
$346,76 Unit Price incl. VAT
6
Cap head screw DIN912 - M5x16
0912050163S
$2,59 Unit Price incl. VAT
7
Cable retainer
A46030502050
$6,49 Unit Price incl. VAT
8
HH collar screw M6x16 TX30
0025060166
$5,19 Unit Price incl. VAT
10
Ignition cover
A46030502000C1
$187,89 Unit Price incl. VAT
11
THREAD PIN DIN 913 M5X6
0913050063S
$2,59 Unit Price incl. VAT
12
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
$5,19 Unit Price incl. VAT
16
O-RING 24X2,5 NBR
0770024025
$0,52 Unit Price incl. VAT
17
SCREW PLUG M24X1,5
7723000216030
$56,04 Unit Price incl. VAT
18
Resistor Plug Cover
79139090000
$91,25 Unit Price incl. VAT
19
spark plug
77839093000
$34,74 Unit Price incl. VAT
21
HH collar screw M6x30 TX30
0025060306
$5,19 Unit Price incl. VAT
22
IGNITIONCOIL IG3826 KOKUSAN'96
58439006000
$115,39 Unit Price incl. VAT
23
HH collar screw M6x40 TX30
0025060406
$5,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
