OIL PUMP FOR MC 450F TROY LEE DESIGNS FROM 2022

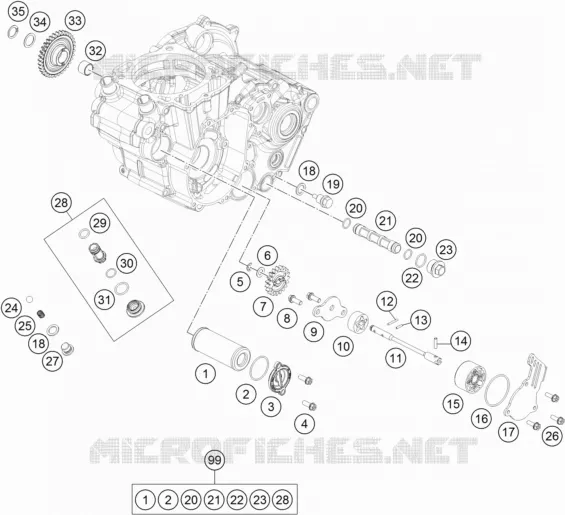

OIL PUMP

1

OIL FILTER

77338005100

$14,29 Unit Price incl. VAT

2

O-RING 33,05X1,78

07703305178

$5,19 Unit Price incl. VAT

3

OIL FILTER COVER 08

77338041200

$17,86 Unit Price incl. VAT

4

HH collar screw M5x16 TX30

0025050166

$3,89 Unit Price incl. VAT

5

TAB WASHER DIN6799-RS 6,0

0799060000

$3,89 Unit Price incl. VAT

6

STOP DISK 8,1 X 15 X 0,5

58038007755

$3,89 Unit Price incl. VAT

7

Oil pump gear wheel, 18 teeth

79538001018

$9,28 Unit Price incl. VAT

8

HH collar screw M6x16 TX30 SL

0025060166S

$3,89 Unit Price incl. VAT

9

OIL PUMP COVER

79438003000

$22,15 Unit Price incl. VAT

10

OILPUMP ROTOR-SET 12MM CPL.

59038011112

$31,73 Unit Price incl. VAT

11

Oil pump shaft suction pump-fo

79438002100

$76,06 Unit Price incl. VAT

12

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$2,59 Unit Price incl. VAT

13

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$2,59 Unit Price incl. VAT

14

needle roller NRB 4x15.8 G2

0402041580

$3,89 Unit Price incl. VAT

15

ROTOR SET 22MM

61238011100

$26,72 Unit Price incl. VAT

16

O-RING 44,00X2,00 VITON

0770440020

$5,19 Unit Price incl. VAT

17

OIL PUMP COVER

79438004100

$102,80 Unit Price incl. VAT

18

CU-SEAL RING DIN7603-12X18X1,5

58038022000

$3,89 Unit Price incl. VAT

19

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$16,22 Unit Price incl. VAT

20

O-RING 12,5X1,5 VITON V75

07701250151

$6,49 Unit Price incl. VAT

21

OIL SCREEN

59038016100

$18,27 Unit Price incl. VAT

22

O-RING 17,17X1,78 GLO

0770020170

$3,89 Unit Price incl. VAT

23

PLUG M20X1,5 WS=13

59038017100

$12,00 Unit Price incl. VAT

24

BALL DIN5401-9

0401090003

$3,89 Unit Price incl. VAT

25

PRESSURE SPRING

79438026000

$3,89 Unit Price incl. VAT

26

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

$3,89 Unit Price incl. VAT

27

PLUG SCREW SAS M12X1,5

78036024000

$14,86 Unit Price incl. VAT

28

OIL SCREEN CPL.

78138015001

$53,47 Unit Price incl. VAT

29

O-RING 12X2 VITON GREEN

0770012021

$3,89 Unit Price incl. VAT

30

O-RING 12,5X1,5 NBR

0770125015

$3,89 Unit Price incl. VAT

31

O-RING 17,00X2,00

0770170200

$3,89 Unit Price incl. VAT

32

NEEDLE BEARING INNER RING

79438001010

$13,43 Unit Price incl. VAT

33

IDLER WHEEL 33T

79438001033

$18,43 Unit Price incl. VAT

34

THRUST WASH. DIN0988-16X22X0,5

0988162205

$3,89 Unit Price incl. VAT

35

CIRCLIP DIN0471-15X1

0471150010

$3,89 Unit Price incl. VAT

99

OILFILTER SERVICEKIT SX-F

79438015010

$87,50 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
