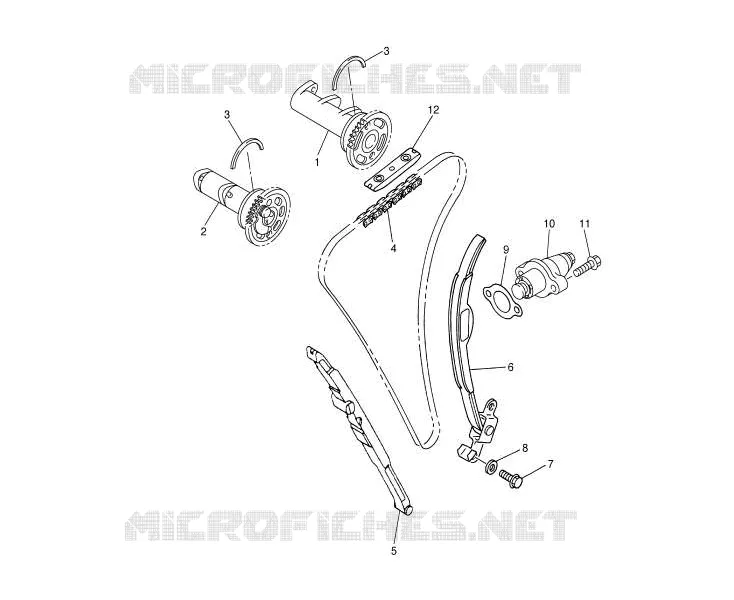

TIMING 250/300
1
CAMSHAFT ASSY 1
5UM1217010
Not Available
2
CAMSHAFT ASSY 2
5UM1218020
Not Available
3
CIRCLIP EC 250 4T
9342016086
Not Available
4
CHAINE DISTRIBUTION EC 250 4T
9459153114
Not Available
5
PATTIN, CHAIN 1 EC 250 4T 2010
5NL1225110
Not Available
6
PATTIN, CHAIN 2 EC 250 4T 2010
5NL1225200
Not Available
7
BOLT
9702206016
Not Available
8
WASHER PLATE
9290206600
Not Available
9
JOINT TENDEUR ECF 250/450
4FM1221300
Not Available
10
TENDEUR CHAINE DIST. EC250 4T
5TA1221020
Not Available
11
BOLT, FLANGE
9502206025
Not Available
12
GUIDE, STOPPER 2 EC 250 4T 2010
5BE1224100
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
