1
Engine displacement
450
2
Year
2005
3
Trim
WILD HP 450
4
Parts Catalog
PLASTICS
5

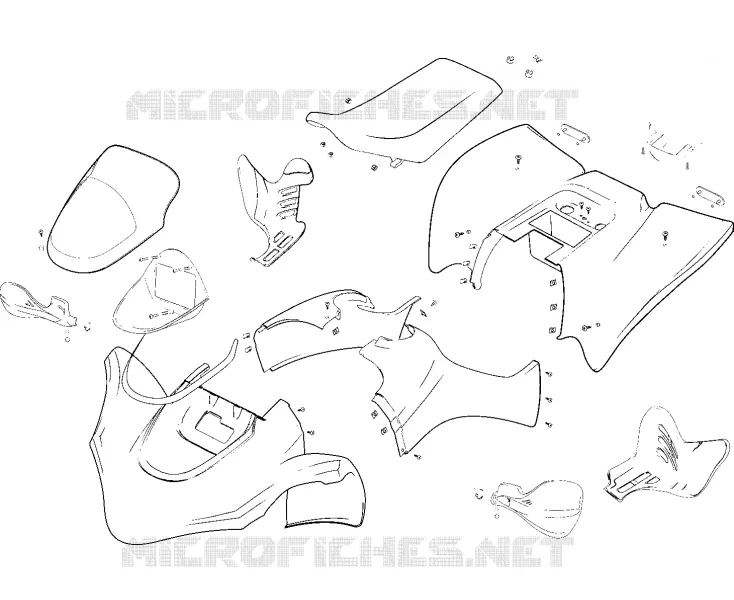

Parts Diagram
Parts Catalog
HANDLEBAR
by
REAR WHEEL
PLASTICS
1
FRONT HEADLIGHT COVER
XX300220032
Not Available
2
5X20 BLACK ULS BOLT
X0505020
Not Available
3
HEADLIGHT COVER SUBJECTION RUBBER
XX300214066
Not Available
4
FRONT HEADLIGHT SUPPORT
XX300220022
Not Available
7
FRONT FENDER
XX300220006ROXX300220006
Not Available
8
RIGHT FEET PROTECTOR
XX300214501
Not Available
9
SEAT
XX300510015
Not Available
11
SEAT TO FRAME HOLDING RUBBER
XX300210155
Not Available
12
SEAT BASE RUBBER
XX300210156
Not Available
14
REAR FENDER
XX300220007ROXX300220007
Not Available
15
REAR LIGHT SUPPORT
XX300234215
Not Available
16
6X16 ULS BOLT WITH WASHER
X0556016
Not Available
17
M6 FAST NUT
X2606000
Not Available
18
X0556014
Not Available
19
LATERAL RIGHT COVER
XX450420012ROXX450320012
Not Available
20
LATERAL LEFT COVER
XX450420013ROXX450320013
Not Available
21
LEFT FEET PROTECTOR
XX300214502
Not Available
26
FRONT PLASTIC SET
XX450420041ROXX450420041
Not Available
27
REAR PLASTIC SET
XX450420042ROXX450420042
Not Available
28
HANDS PROTECTOR SET
XXX400220034GCXXX400220034GC
Not Available
29
CATADRIOPTIC
XX300234125
Not Available
30
6X20 ULS WITH WASHER
X0556020
Not Available
31
6X25 ULS WITH WASHER
X0556025
Not Available
32
CATADRIOPTIC STAPLE
XX300234126
Not Available
33
FRONT HEADLIGHT COVER GASKET
XX300420062
Not Available
34
INFERIOR SUBJECTION BATTERY
XX450434083
Not Available
35
INFERIOR SUBJECTION BATTERY
XX450434082
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
