1
Engine displacement
300
2
Year
2005
3
Trim
ec-300
4
Parts Catalog
FRONT FORK MARZOCCHI 45
5
Parts Diagram
Parts Catalog
HANDLEBAR
by
PLASTICS KIT EC 2001-2006

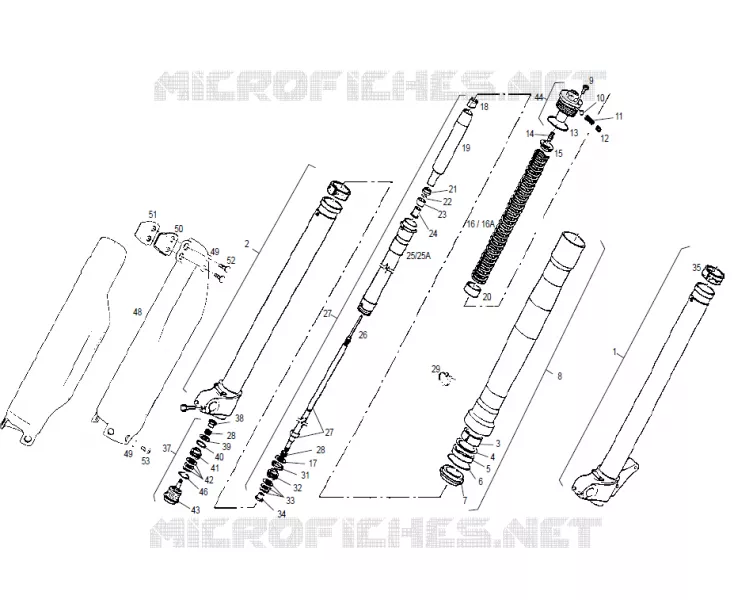

FRONT FORK MARZOCCHI 45
1
TUBE FOURCHE MARZO GAUCHE
BE250414143
Not Available
2
TUBE FOURCHE MARZO DROIT
BE250414142
Not Available
3
BAGUE DE FOURCHE INF. OUTLET
BE250314131
Not Available
4
RONDELLE SOUS SPY MARZO
BE250114133
Not Available
5
SPY SUSPENSION 45X58X11 R
C240701
Not Available
6
CLIPS SPY FOURCHE
BE25714132
Not Available
7
CACHE POUSSIERE D45
BE25714131
Not Available
8
FOURREAU MARZO INV.
BE250314110
Not Available
8
FOURREAU FOURCHE MARZO OUTLET
BE250514110
Not Available
9
VIS DE PURGE FOURCHE MARZO M4
BE25714103
Not Available
10
BILLE BOUCHON REGU.
BE250114225
Not Available
11
RESSORT BOUCHON REGUL.
BE250114226
Not Available
12
VIS BOUCHON REGUL.
BE250114227
Not Available
13
TORICA TAPON REGULACION
BE250114104
Not Available
14
VIS REGLAGE FOURCHE MARZO
BE250114112
Not Available
15
CASQUILLO GUIA MUELLE 536071
BE250114107
Not Available
17
JOINT 23X8.1X0.3 C72 BLU
BE250114245
Not Available
18
TUERCA BLOQUEADOR M12X25 521119K
BE250114242
Not Available
19
SPRING GUIDE
BE250514229
Not Available
20
TOPE PRECARGA 5181393
BE250514109
Not Available
20
KIT RESSORT FOURCHE 0,40 R
BE250114228
Not Available
20
TOPE PRECARGA 40X3X40
BE120514109
Not Available
21
TOPE DE FONDO 521164
BE250114230
Not Available
22
CLIPS DE RETENTION DE POMPE
BE250114231
Not Available
24
TOPE FONDO USD D45 532911
BE250114233
Not Available
26
VARILLA INTERNA 556492
BE250114234
Not Available
27
SUPPORT AIGUILLE FOURCHE MARZO
BE250114116
Not Available
27
CONJUNTO HIDRAULICO 8031331
BE250514116
Not Available
28
RESSORT
BE250114118
Not Available
29
Clamp 4,8x36
BE25634007
$2,59 Unit Price incl. VAT
31
SEGMENT PISTON FOURCHE MARZO
BE250114120
Not Available
32
REBOUND PISTON
BE250514119
Not Available
33
ARANDELA SUSPENSION 15X8.1X0.1
BE250114238
Not Available
33A
ARANDELA SUSPENSION 19X8.1X0.1
BE250114239
Not Available
33B
ARANDELA SUSPENSION 17X8.1X0.1
BE250114240
Not Available
33C
RONDELLE SUPENSION 21X8.1X0.1
BE250114241
Not Available
34
VALVE BASE MARZO
BE250114126
Not Available
35
BAGUE DE FOURCHE MARZO 45
BE250114128
Not Available
36
BAGUE DE FOURCHE MARZO 45
BE250114144
Not Available
37
BOUCHON INF. MARZO 45MM
BE250514124
Not Available
38
ENTRETOISE 6X0.75 MARZO
BE250114244
Not Available
40
TORIC D21.95 S1.78
BE250114246
Not Available
41
COMPRESSION PISTON
BE250514247
Not Available
42
JOINT 19X8.1X0.1 517081
BE2501142481
Not Available
43
VIS DE REGLAGE BAS DE FOURCHE
BE250114249
Not Available
43
BOUCHON COMPR. MARZO EC
BE250514249
Not Available
44
BOUCHON SUP MARZO STD 45 EC
BE250514105
Not Available
44
BOUCHON SUP MARZO STD 45 EC
BE250114105
Not Available
45
TORIC BASE MARZO D25.1S1.78
BE250114250
Not Available
46
JOINT 17X8.1X0.1 517151_
BE2501142483
Not Available
48
JEU PROTEGE FOURCHE ROUGE OUTLET
BC250514040
Not Available
49
Bushing
BC250014050
$5,19 Unit Price incl. VAT
50
SUPPORT DURITE EC GAUCHE WP
BC250014155
Not Available
51
SUPPORT DURITE EC DROITE WP
BC250014156
Not Available
52
VIS M6X16 8,8
T0206016
Not Available
53
VIS TORK
T0316012
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
