1
Engine displacement
300
2
Year
2015
3
Trim
ec-racing-300
4
Parts Catalog

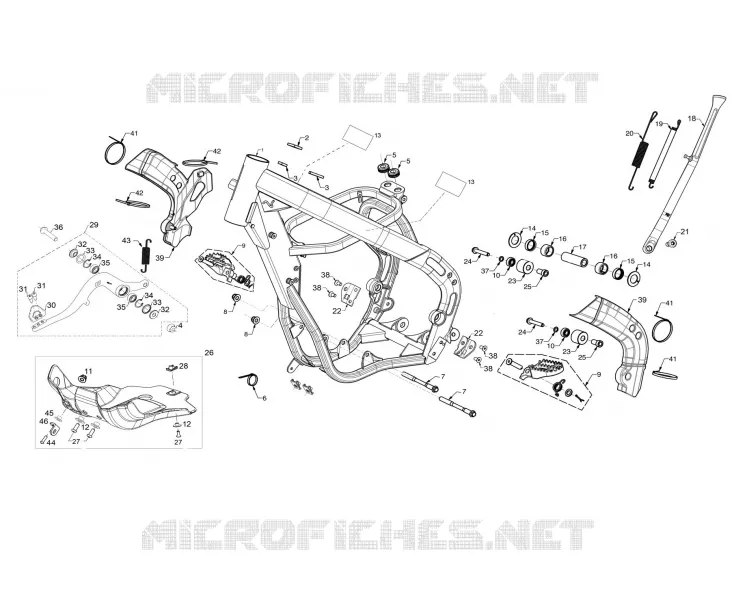

FRAME
5
Parts Diagram
Parts Catalog
SWINGARM
by
EXHAUST
FRAME
1
CADRE EC RACING 2014
BE10000CTCAB1
Not Available
2
TIRA RECTA GOMA ADHESIVA 35x10x5
BE10000303012
Not Available
3
CAOUTCHOUC ADHESIFS 25X25X5
BE10000313012
Not Available
4
PLUS LIVRABLE
T2208002
Not Available
5
SILENBLOCK SILENCIEUX
BE250026005
Not Available
6
COLLIER UNEX 2244 4.8X20
BE25634009
Not Available
7
VIS MOTEUR M10X118
T0210118
Not Available
8
ECROU 10 DE 1.25 ROUE QUAD
T3110002
Not Available
9
JEU REPOSE PIEDS EC-15
BE14005CTCEQ1
Not Available
10
RLT 8x22x7 608 2RS
RLT052
Not Available
11
Nut selflocking
T2206002
$2,59 Unit Price incl. VAT
12
ENTRETOISE PROTECTION CARTER
BE11511GGCAB1
Not Available
13
ADHESIF PROT. CADRE EC 2014
BE95154GGCAW1
Not Available
14
RONDELLE G (REF.GTM-2238-015
T4003822
Not Available
15
JOINT SPY DIAM.28X22X8 BIELLE
BE32025N3011
Not Available
16
DOUILLE A AIG. 22x28x16 HK2216
BE25614010
Not Available
17
ENTRETOISE BIELLETTE 14x22x69
BE32020N3011
Not Available
18
BEQUILLE EC REPLICA FACTORY
BE142003013
Not Available
19
RESSORT BEQUILE COURT
BE10000523012
Not Available
20
RESSORT EXT.BEQUILLE
BE250510039
Not Available
21
VIS DE BEQUILLE TXT / EC
BE142203013
Not Available
22
PLATINE REPOSE PIEDS
BE14090GGCEQ1
Not Available
23
ROULETTE DE CHAINE SECONDAIRE EC
BE05000013013
Not Available
24
VIS SPECIAL 8X50 12.9 ZINCADO
T0208050
Not Available
25
ENTRETOISE ROULETTE
BE14235GGCAB1
Not Available
26
SABOT EC RACING EC 2014
BE11500GGCAW1
Not Available
27
Screw 8x20
T0508020
$3,89 Unit Price incl. VAT
28
AGRAPHE ECROU DIAM 8
BT280010041
Not Available
29
PEDALE DE FREIN AR EC 14
BE13000CTCAB1
Not Available
30
EMBOUT PEDALE FREIN EC
BE130102510
Not Available
31
VIS BTR M5X12
T0305012
Not Available
32
BAGUE DE PEDAL FREIN 2012
BE15000023012
Not Available
33
Gasket 15x21x2
C230001
$3,89 Unit Price incl. VAT
34
CIRCLIPS D19X1 IN 472
SE01190100109
Not Available
35
ROULEMENT PEDALE DE FREIN EC
RD0108019006A
Not Available
36
VIS CULASSE 125 EC M8X40
T0208040
Not Available
37
RONDELLE
T4006512
Not Available
38
VIS SUPPORT REPOSE PIED 2015
T0458016
Not Available
39
JEU PROTECTION CADRE EC 2013 *
BE190003013CT
Not Available
41
Clamp 4,8x36
BE25634007
$2,59 Unit Price incl. VAT
42
RYSLAN NYLON 3.6x140
BE250022031
Not Available
43
RESSORT DE PEDALE DE FREIN
BE13015GGCAB1
Not Available
44
PLUS LIVRABLE
T0506020
Not Available
45
ENTRETOISE PROTEC. CHAIN
BE250720106
Not Available
46
SUPPORT PROTECTION CARTER
BE11504GGCAW1
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
