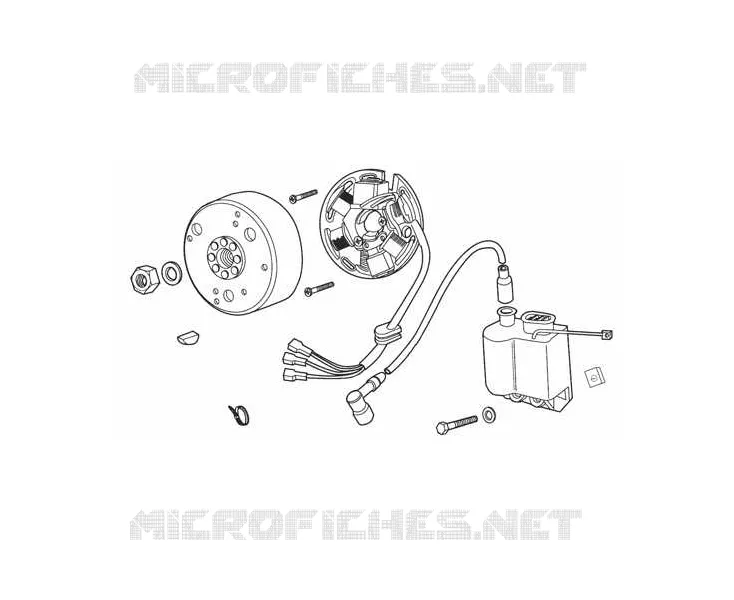

FLYWHEEL MAGNETO FOR MC 65 FROM 2006

FLYWHEEL MAGNETO

1

SCREW, STATOR PLATE

3133260

Not Available

2

STATOR PLATE

00H03300701

Not Available

3

COIL CABLE RUBBER PROTECTOR

00F03300731

Not Available

4

NUT

00D01501371

Not Available

5

COIL, PRIMARY IGNITION

00H03330171

Not Available

6

MACHINED FLAT WASHER D5

00D01200171

Not Available

7

HEX.HEAD SCREW 5M80X15

12162000

Not Available

8

CABLE COIL PRIMARY IGNITION

00F03310741

Not Available

9

ANTI PARASITE MC 65

00G03301271

Not Available

10

ROUNDHEAD PHILIPS SCREW 4MM-7

12420

Not Available

11

BLACK CABLE TIE

00F00900531

Not Available

12

KEY, FLYWHEEL

3133230

Not Available

13

MAGNETO ASSEMBLY

00H03301011

Not Available

14

WASHER, FLYWHEEL 10MM

00F03300241

Not Available

15

NUT,MAGNETO ASSEMBLY

00H03300221

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
