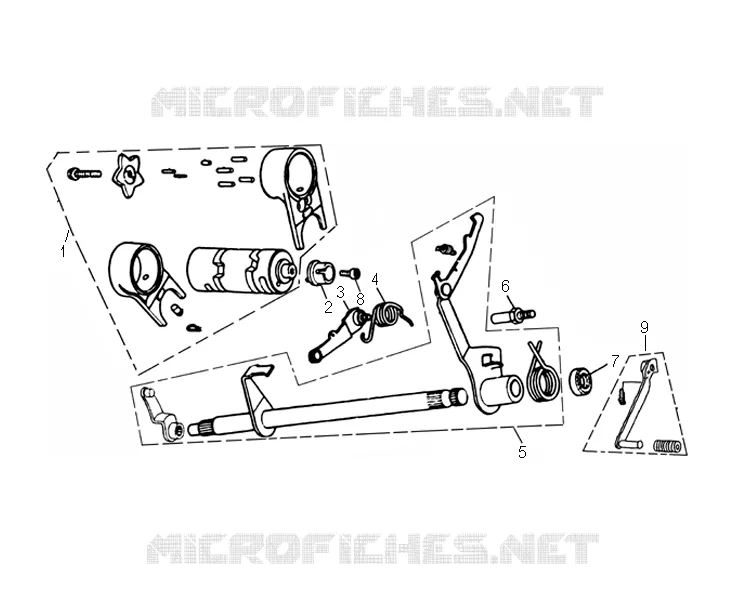

GEAR SHIFT SELECTOR DRUM
16-1
CTO. DESMODROMICO Y HORQUILLAS K
108100
Not Available
16-2
PIECE, CHANGE SWITCH DRIVER
377210
Not Available
16-3
SPINDLE COMP., GEARSHIFT DRUM
108150
Not Available
16-4
SPRING, SHIFT DRUM STOPPER
108199
Not Available
16-5
SPINDLE COMP., GEARSHIFT
108210
Not Available
16-6
PIN, SHIFT RETURN SPTRING
108196
Not Available
16-7
OIL SEAL 11.6�24�10
108298
Not Available
16-8
YH BOLT, SOCKET M6�16
D00616
Not Available
16-9
PEDAL COMP., CHANGE
201100
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
