Parts Catalog
FRONT FORK (PARTS)
5

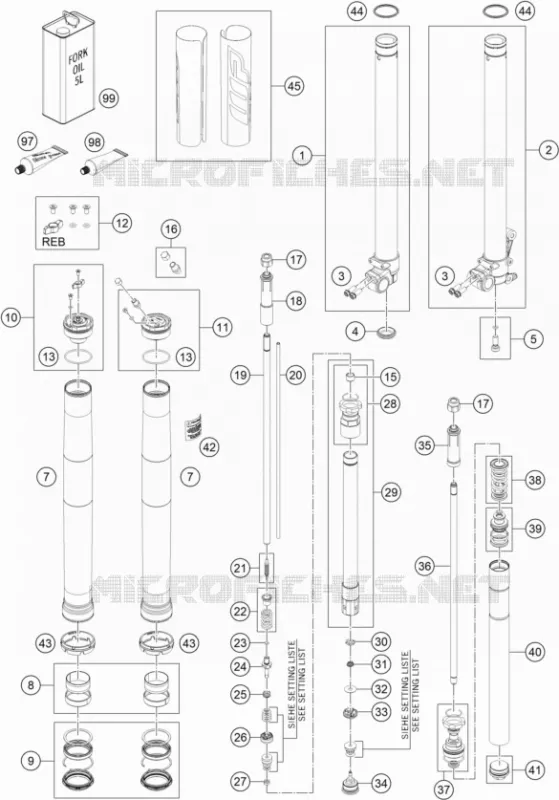

Parts Diagram
Parts Catalog
FRONT FORK / TRIPLE CLAMP
by
HANDLEBAR / CONTROLS
FRONT FORK (PARTS)
98
98
3
3
3
3
25
25
27
27
13
13
13
13
1
1
35
35
39
39
41
41
18
18
17
17
17
17
43
43
43
43
44
44
44
44
11
11
10
10
20
20
28
28
2
2
7
7
7
7
32
32
4
4
30
30
31
31
21
21
23
23
15
15
24
24
22
22
34
34
29
29
99
99
37
37
16
16
36
36
40
40
19
19
38
38
33
33
26
26
45
45
42
42
8
8
9
9
12
12
5
5
97
97
1
Axle clamp right + tube 85SX c
43570818S1
$871,86 Unit Price incl. VAT
2
Axle clamp left + tube cpl.
43570968S1
$573,13 Unit Price incl. VAT
3
HH collar screw M8x20
0025080206
$3,89 Unit Price incl. VAT
4
Rubber cap 35x10 NBR80
48600141
$6,28 Unit Price incl. VAT
5
HS screw M10x23 cpl.
S218700000S0000
$26,01 Unit Price incl. VAT
7
Fork outer tube 44.13x510 dt49
43570982
$346,48 Unit Price incl. VAT
8
GUIDE BUSHING SET
R14042
$56,24 Unit Price incl. VAT
9
GASKET SET
R513
$131,16 Unit Price incl. VAT
10
Screw cap M46x1,5 cpl.
43570928S
$124,97 Unit Price incl. VAT
11
screw cap M46x1,5 Luft cpl.
43570927S
$127,69 Unit Price incl. VAT
12
Adjuster kit screw cap
RP10021
$2,39 Unit Price incl. VAT
13
O-ring 41x2 NBR70 siliconized
43570023
$20,72 Unit Price incl. VAT
15
Guide bushing 12x14x10
48600430
$9,85 Unit Price incl. VAT
16
VALVE M8X1 INCL. SCREW CAP
48601494S
$81,07 Unit Price incl. VAT
17
Lock nut M12x1 h20 WAF22
43570859
$36,17 Unit Price incl. VAT
18
Stop 12,2x25x115
43570856
$21,01 Unit Price incl. VAT
19
Piston rod 12x477,5
48601811
$191,49 Unit Price incl. VAT
20
adjustment tube 6x445,1
43570929
$8,42 Unit Price incl. VAT
21
Needle 4,5x43,6 cpl.
48600277S
$13,72 Unit Price incl. VAT
22
Spring (13,9) 37-32 rebound cp
48600578S
$6,28 Unit Price incl. VAT
23
O-ring 6x1,2 NBR70
48600299
$1,56 Unit Price incl. VAT
24
Tap 6x46 rebound
48600576
$19,49 Unit Price incl. VAT
25
Spring (11,7) 1,5-8 valve
35480377
$3,13 Unit Price incl. VAT
26
Midvalve piston assembly d23
48602002S
$28,16 Unit Price incl. VAT
27
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$6,28 Unit Price incl. VAT
28
Screwsleeve M27x0,8 cpl.
43570936S
$69,20 Unit Price incl. VAT
29
Cartridge tube cpl.
48600870S7
$684,24 Unit Price incl. VAT
30
Nut valve M6x0,5 h6,5 WAF17
48600163
$4,71 Unit Price incl. VAT
31
Spring (8,5) l6,5 valve
48600202
$3,13 Unit Price incl. VAT
32
Shim 8x24x0,40
48600061
$3,13 Unit Price incl. VAT
33
Piston 6x27,3x9 compression cp
48601934S
$20,58 Unit Price incl. VAT
34
Tap compression cpl.
48600586S
$134,94 Unit Price incl. VAT
35
Stop 12,2x25x78,5
43570819
$33,45 Unit Price incl. VAT
36
Piston rod 12x470
48601501
$193,27 Unit Price incl. VAT
37
Screw sleeve M35,5x0,8
48601452S2
$97,66 Unit Price incl. VAT
38
Spring (22) 60-30 rebound cpl.
48601820S1
$70,06 Unit Price incl. VAT
39
Piston 5x34x31,5 mainpiston Fr
43570844S
$101,37 Unit Price incl. VAT
40
Tube incl. mounting 410mm air
48601571S2
$351,62 Unit Price incl. VAT
41
Adapter M10xM35,5x0,8x25 cpl.
43570845S
$42,89 Unit Price incl. VAT
42
Sticker warning 60x40
52000315
$38,31 Unit Price incl. VAT
43
Fork protection ring 55,1mm
43570915
$4,71 Unit Price incl. VAT
44
Stroke indicator d43 red
43570926
$6,28 Unit Price incl. VAT
45
Sticker XAXT AER OC 161x214
52000229SET
$45,49 Unit Price incl. VAT
97
Fuchs grease IPR (250g)
T14034
$52,90 Unit Price incl. VAT
98
special grease AER Fork 400g
00062010053
$129,40 Unit Price incl. VAT
99
Fork Fluid Viscosity 4.0 5L
48601166S1
$228,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
