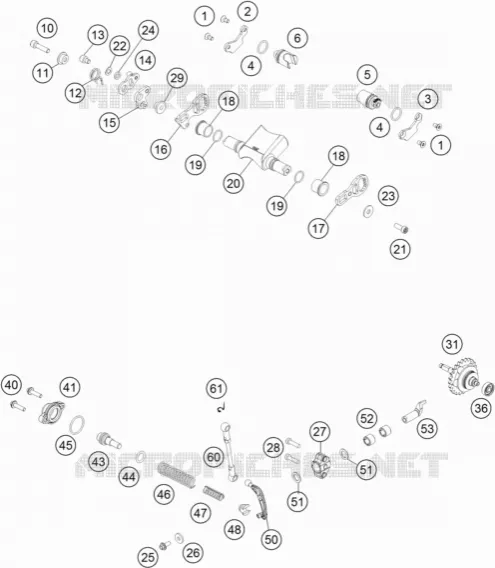

EXHAUST VALVE
25
40
1
1
23
28
22
13
21
10
26
52
44
19
19
4
4
45
51
51
50
61
18
18
24
11
41
48
47
36
46
43
2
3
17
53
5
6
31
27
14
12
29
15
60
20
16
1
hex lobe countersunc screw M5x
0019050106S
$3,89 Unit Price incl. VAT
2
retainer plate right
54837362100
$19,29 Unit Price incl. VAT
3
retainer plate left
54837363100
$19,29 Unit Price incl. VAT
4
O-RING 16,00X2,00 VITON
0770160021
$5,19 Unit Price incl. VAT
5
CONTROL ROLLER 300 LEFT CPL.
55437161044
$63,48 Unit Price incl. VAT
6
CONTROL ROLLER 300 RIGHT CPL.
55437162044
$63,48 Unit Price incl. VAT
10
CYL. SCREW DIN14580 M 6X25
014580060256
$3,89 Unit Price incl. VAT
11
SPRING SLEEVE
54637067000
$6,49 Unit Price incl. VAT
12
Overload spring
55537066000
$2,59 Unit Price incl. VAT
13
Cap head screw M6x10
014580060106
$3,13 Unit Price incl. VAT
14
Adjusting lever cmpl.
55537065000
$21,01 Unit Price incl. VAT
15
Post mount cmpl.
55537080000
$32,16 Unit Price incl. VAT
16
Gear segment right cmpl.
55737064044
$32,02 Unit Price incl. VAT
17
GEAR SEGMENT 300 L/S 08
54837364050
$49,04 Unit Price incl. VAT
18
exaust flap bushing
50437023100
$8,00 Unit Price incl. VAT
19
O-RING 15,00X1,50 VITON
0770150151
$5,19 Unit Price incl. VAT
20
Control flap 300
55737020000
$151,71 Unit Price incl. VAT
21
SHCS ISO 14580 M6x16
014580060166
$3,89 Unit Price incl. VAT
22
spring washer DIN 137 B - 6
0137060003
$3,89 Unit Price incl. VAT
23
WASHER DIN9021-A 6,4
0021060003
$3,89 Unit Price incl. VAT
24
WASHER 6,5X11X2
54637056100
$2,59 Unit Price incl. VAT
25
Hex collar screw M 5x12 SW=6
0000140501200S
$2,59 Unit Price incl. VAT
26
WASHER DIN7349-5X15X2
0349000050
$2,59 Unit Price incl. VAT
27
Bearing support
55537058000
$25,73 Unit Price incl. VAT
28
HH collar screw M5x25 TX30
0025050256S
$2,59 Unit Price incl. VAT
29
Bearing sleeve
55537068000
$8,00 Unit Price incl. VAT
31
Centrifugal governor assy.
55537050244
$179,84 Unit Price incl. VAT
36
BALL BEARING 626LLBC3/5K
54637098100
$19,29 Unit Price incl. VAT
40
HH COLLAR SCREW M 5X20 WS=6
0014050203
$5,19 Unit Price incl. VAT
41
Closing cover 250-360
54637070300
$23,71 Unit Price incl. VAT
43
SPRING GUIDE 250/300
54837075000
$19,10 Unit Price incl. VAT
44
O-RING 12,37X2,62 NBR70
0770021120
$5,19 Unit Price incl. VAT
45
O-RING 24,00X2,00 NBR70
0770240020
$3,89 Unit Price incl. VAT
46
ADJUST. SPRING 2003
54837069000
$5,19 Unit Price incl. VAT
47
AUXILIARY SPRING MID. YELLOW
54637072300
$5,19 Unit Price incl. VAT
48
SPRING INSERT
54637071200
$13,86 Unit Price incl. VAT
50
Power valve control lever
47237056100
$48,46 Unit Price incl. VAT
51
SHIM WASHER DIN988 10X16X1
0988101610
$3,89 Unit Price incl. VAT
52
needle sleeve HK 1010 10x14x10
0618101410
$9,14 Unit Price incl. VAT
53
Control lever 250/300
55437057200
$59,76 Unit Price incl. VAT
60
Linkage cmpl.
55537095044
$21,01 Unit Price incl. VAT
61
SECURING DIN-71805-S-8
50237195055
$3,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
