1
Engine displacement
300
2
Year
2013
3
Trim
ec-300-replica-factory
4
Parts Catalog

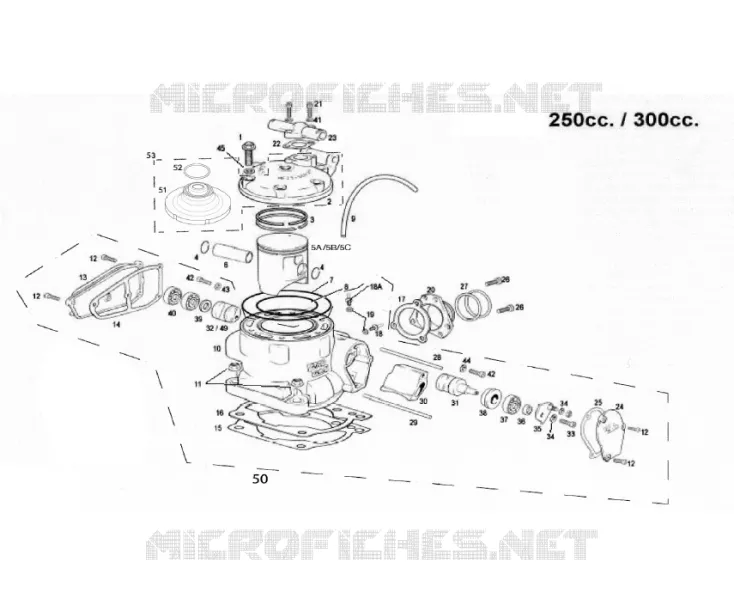

CYLINDER / HEAD
5
Parts Diagram
Parts Catalog
INTAKE REED VALVE
by
CLUTCH
CYLINDER / HEAD
1
VIS BTR M8X35
T0308035
Not Available
2
CULASSE EC REPLICA FACTORY
ME751003013
Not Available
3
JEU SEGMENT EC 250
ME25616040
Not Available
3
JEU SEGMENT EC 300
ME30916040
Not Available
4
CLIP AXE DE PISTON TT 250
ME25616126
Not Available
5A
CLIP AXE DE PISTON TT 250
ME300416020
Not Available
5A
CLIP AXE DE PISTON TT 250
ME25616020R
Not Available
5B
CLIP AXE DE PISTON TT 250
ME25616121R
Not Available
5B
CLIP AXE DE PISTON TT 250
ME300416121
Not Available
5C
CLIP AXE DE PISTON TT 250
ME30916122R
Not Available
5C
CLIP AXE DE PISTON TT 250
ME25616122R
Not Available
6
AXE PISTON EC 250/300
ME25616125
Not Available
7
TORIC CULASSE EXT. 107.67X1.78
ME25916060
Not Available
8
TORIC INTERIEUR CUL. 72.7x1.78
ME25916065
Not Available
8
TORIC INT CULASSE 300CC
ME30916065
Not Available
9
TUBO DESV.CARTER (55 cm.)
ME25610022
Not Available
10
CYLINDRE SEUL EC 300 2013
ME700003013
Not Available
10
CYLINDRE SEUL EC 250 2013
ME700002513
Not Available
11
Nut 10x1,5 8.8
M01613001
$2,59 Unit Price incl. VAT
12
VIS D.5x15 ZI
T0205015
Not Available
13
CARTER VALVE GAUCHE 2013
ME100033013
Not Available
14
JOINT CARTER VALVE G.
ME25644006
Not Available
15
JOINT EMBASE 0.15
ME25644010
Not Available
16
JOINT EMBASE 0.5
ME25644000
Not Available
16A
JOINT EMBASE 0.3
ME25644009
Not Available
17
JOINT SORTIE ECHAPPEMENT *
ME25644012
Not Available
18
VIS D'AIR SPECIAL
ME25710012
Not Available
18A
RENIFLARD TXT
M01032001
Not Available
19
RONDELLE FIBRE 6X10X1.5
T4006010
Not Available
20
BRIDE ECHAP. ACIER
ME250516019
Not Available
21
Screw 6x20
T0306020
$2,59 Unit Price incl. VAT
22
COVER GASKET
ME792003013
Not Available
23
CARTER ENTREE EAU CULASSE
ME250316001
Not Available
24
CARTER VALVE DROIT EC 2014
ME72020GGCAB1
Not Available
25
JOINT CARTER VALVE D. 1MM
ME25644007
Not Available
26
ULS TORX 6X14
T0566014
Not Available
27
TORIC POT ECHAP NOIR *
BE250526006
Not Available
28
AXE VALVE 93MM
ME25616027
Not Available
29
AXE DE VALVE VOLANT
ME25616017
Not Available
30
VALVE ECHAP. CENTRAL
ME25616015
Not Available
31
VALVE ECHAPPEMENT DROITE
ME25616016
Not Available
32
VALVE ECHAP. GAUCHE
ME25616014
Not Available
33
VIS BTR M5X12
T0305012
Not Available
34
Washer 5x12x1,5
T4005012
$2,59 Unit Price incl. VAT
35
BALANCIER DE VALVE ECHAPPEMENT
ME25616050
Not Available
36
ENTRETOISE VALVE ECHAPPEMENT
ME25916048
Not Available
37
Bearing 6000 C3Z
ME25610010
$12,00 Unit Price incl. VAT
38
BAGUE ALU VALVE ECHAPPEMENT
ME25616036
Not Available
39
Washer 8x16x1,5
T4008016
$2,59 Unit Price incl. VAT
40
RLT 8X22X7 608Z
ME25616032
Not Available
41
RONDELLE CUIVRE 6X10X1.5*
T4006008
Not Available
42
VIS 6X10
T0306010
Not Available
43
Washer 6x18x1,5
T4006018
$3,89 Unit Price incl. VAT
44
Washer 6x12x1,5
T4006012
$2,59 Unit Price incl. VAT
45
Washer 8x12x1
T4008012
$2,59 Unit Price incl. VAT
49
VALVULA ESCAPE IZQ. HOMOLOGACION
ME25616014H
Not Available
50
CYLINDRE/VALV/PIST EC300 15 ****
ME70000CTCEQ1
Not Available
50A
CYLINDRE/VALV/PISTON EC250 ****
ME700002513CT
Not Available
51
INSERT CULASSE 300 REPLICA FACT
ME755003013
Not Available
51
INSERT CULASSE 250 REPLICA FACT
ME755002513
Not Available
52
TORIC INT DE CULASSE INTERCH RA
ME75510R3010
Not Available
53
CYLINDER HEAD SET
ME750002513
Not Available
53
CYLINDER HEAD SET
ME750003013
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
